Engine, Removing, AUDI Q5

Special tools and workshop equipment required

• Pry Lever:80-200
  Fig 1: Identifying Pry Lever

  Courtesy of AUDI
• Engine Bung Set:VAS6122
  Fig 2: Engine Bung Set

  Courtesy of AUDI
• Scissor Lift Table:VAS6131B
  Fig 3: Scissor Lift Table (VAS6131B)

  Courtesy of AUDI
• Scissor Lift Table - Audi Set:VAS6131/10
  Fig 4: Identifying Scissor Lift Table - Audi Set VAS 6131/10

  Courtesy of AUDI
• (Quantity: 2) Scissor Lift Table - A8 Set - Mounting:VAS6131/11-4  from Scissor Lift Table - A8 Set:VAS6131/11  , not illustrated
• (Quantity: 2) Scissor Lift Table - A6 Set - Mounting Pins:VAS6131/12-2  from Scissor Lift Table - A6 Set:VAS6131/12  , not illustrated
• (Quantity: 2) Threaded spindle from the Scissor Lift Table - Q7 Set:VAS6131/13
  Fig 5: Identifying Scissor Lift Table - Q7 Set VAS 6131/13

  Courtesy of AUDI
• Shop Crane - Drip Tray:VAS6208
  Fig 6: Identifying Drip Tray

  Courtesy of AUDI
• Hose Clip Pliers:VAS6340
  Fig 7: Hose Clip Pliers VAS6340

  Courtesy of AUDI
• Hose Clip Pliers:VAS6362
  Fig 8: Hose Clip Pliers

  Courtesy of AUDI
• Protective Eyewear
• Safety Gloves

Procedure

• With the lock carrier installed, the engine is removed downward with the transmission.
• During installation, all cable ties must be installed at the same location.
• During installation, all heat shield boots must be installed at the same location.
• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
• All suspension component bolts with bonded rubber bushings on vehicles with coil spring in the curb weight position (unloaded condition) or in the control position on vehicles with air suspension must be tightened.
• Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position or control position). Otherwise, the bonded rubber bushing will be under stress, which will reduce the service life.

-- Before starting the procedures, determine the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING or determine the control position (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).

• The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- Move the front wheels so that they are in a straight-ahead position.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Open the cover -1- for the coolant expansion tank by releasing the catch in direction of -arrow-.

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front wheels. Refer to WHEELS AND TIRES .

-- Remove the left and right wheel spoiler and loosen the right front wheel housing liners. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Loosen the left front wheel housing liner in the front area and push slightly toward the rear. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the noise insulations. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the front lower longitudinal member. Refer to OVERVIEW - LOCK CARRIER .

-- Disconnect the connector -2- for the Engine Coolant Temperature Sensor on Radiator Outlet -G83- and free up the wire.

-- Place the Shop Crane - Drip Tray:VAS6208  underneath.

Courtesy of AUDI

-- Lift the clip -2-, remove the coolant hose and allow the coolant to drain.

-- Free up the coolant hose.

-- Loosen the hose clamp -right arrow-, remove the coolant hose from the ATF cooler and allow the coolant to drain.

Courtesy of AUDI

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not pull sharply on the engine cover or pull it to one side.

Courtesy of AUDI

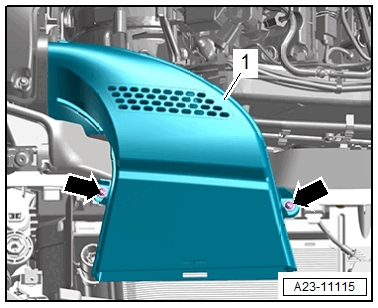

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI

-- Remove the vacuum hose -3- without damaging it.

Courtesy of AUDI

-- Loosen the hose clamp -2- and remove the air duct hose.

-- Pull the air filter housing -1- upward.

-- Disconnect the fuel hose -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS6122  .

-- Disconnect the connector -arrow-.

Courtesy of AUDI

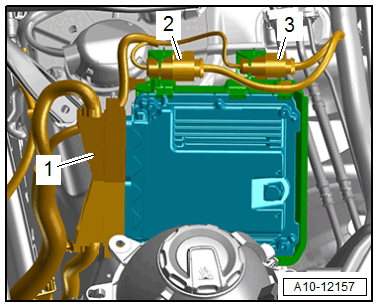

-- Release the latch in direction of -arrow B- and open the E-box -1- in direction of -arrow A-.

Courtesy of AUDI

-- Remove the nut -2- and free up the B+ wire.

-- Free up the upper wiring duct.

-- Open the heat shield boot.

Courtesy of AUDI

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Vehicles with a Particulate Filter:

Courtesy of AUDI

-- Disconnect the connector -arrow- for the Dual Exhaust Temperature Sensor 1 -GX41-.

-- If the engine and transmission are to be separated: remove the connector from the bracket and free up the wires.

-- Open the heat shield boot.

Courtesy of AUDI

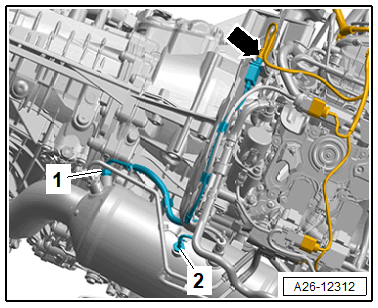

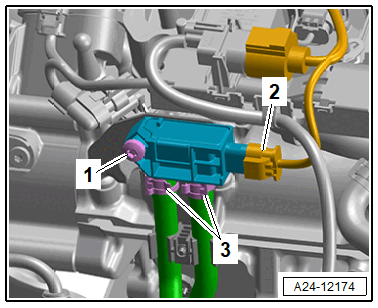

-- Disconnect the connector -2- for the Particulate Filter Differential Pressure Sensor -G1037-.

-- If the engine and transmission are to be separated, remove the bolt -1- and free up the differential pressure sensor.

Continuation for All Vehicles:

Courtesy of AUDI

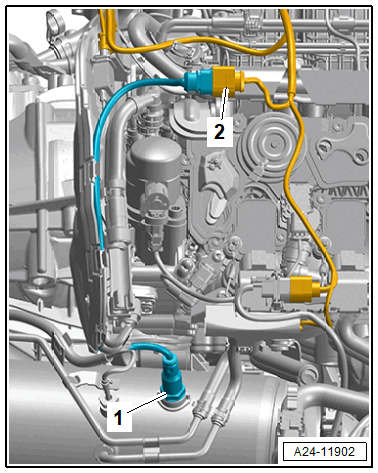

-- Disconnect the connector -2- for Oxygen Sensor 1 after Catalytic Converter -GX7- -1-.

-- Disconnect the connector -2- for the Oxygen Sensor 1 before Catalytic Converter -GX10-.

Courtesy of AUDI

-- If installed, disconnect the connector -1- for the Tank Ventilation Pressure Sensor 1 -G950-, then free up the wire.

Courtesy of AUDI

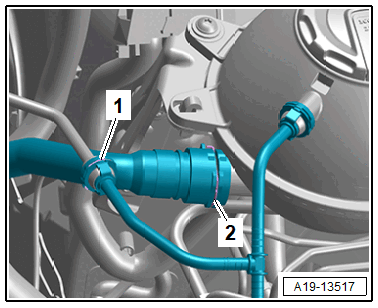

-- Lift the clamps -1 and 2-, remove and free up the coolant hoses.

Courtesy of AUDI

-- Lift the clip -2- and remove the coolant hose from the upper radiator.

Courtesy of AUDI

-- Lift the clamp -1- and remove the coolant hose.

Courtesy of AUDI

-- Loosen the hose clamps -arrows- and remove the coolant hoses (example illustration).

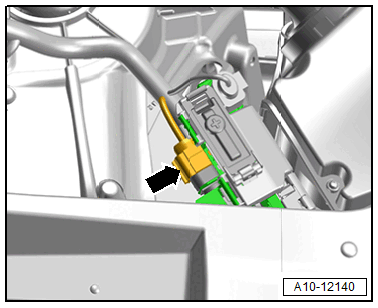

-- Disconnect the connector -arrow- for the Starter Generator -C29-.

Courtesy of AUDI

-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.

Courtesy of AUDI

-- Loosen the screw-type clamp -1- and remove the air duct pipe from the Throttle Valve Control Module -GX3- (example illustration).

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS6122  .

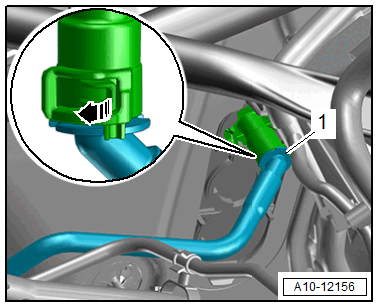

-- Release the retainer in direction of -arrow- and remove the vacuum hose -1-.

Courtesy of AUDI

-- Remove the connector -2- from the bracket and disconnect it.

Courtesy of AUDI

-- Disconnect the connector -1- from the Engine/Motor Control Module -J623-.

-- Free up the wiring harness and place on the engine.

Vehicle without Particulate Filter:

-- Remove the nuts -1- from the front muffler accessible from the top.

-- Remove the nut -2- and bolt -3- for the front muffler.

Vehicles with a Particulate Filter:

Courtesy of AUDI

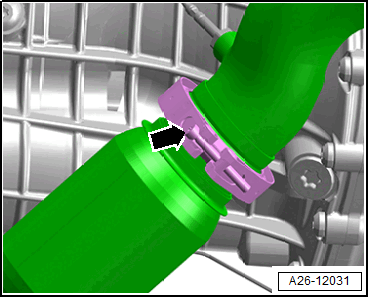

-- Loosen the screw-type clamp -arrow-.

TIP:

To loosen the screw-type clamp counter with two nuts on the threaded spindle and loosen these.

Continuation for All Vehicles:

-- Remove the front muffler bolts -arrows-. (Shown on the right.)

-- Loosen the clamping sleeve -arrows- and push toward the rear.

-- Remove the front muffler.

-- Remove the driveshaft. Refer to the appropriate Service Information. .

-- Disconnect the connector -arrow- for the All-Wheel Drive Control Module -J492-.

Courtesy of AUDI

-- Disconnect the connectors and free up the wires.

Courtesy of AUDI

1 -  For the Parking Lock Solenoid -N486-

3 -  For the Transmission Electric Pump 2 -V553-

-- Disconnect the connector -2- at the transmission.

-- Loosen the left and right hose clamp -1- and remove the air duct pipe.

Courtesy of AUDI

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS6122  .

-- Loosen the hose clamp -arrow- and remove the air duct hose at the right from the turbocharger.

Courtesy of AUDI

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS6122  .

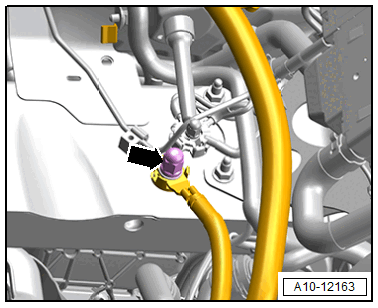

-- Remove the nut -arrow- and free up the ground wires.

Courtesy of AUDI

-- Free up the wiring harness to the engine.

-- Remove the subframe. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Detach the left and right drive axles from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the A/C compressor with the refrigerant hoses still connected from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .

-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1- (example illustration).

Courtesy of AUDI

Scissor Lift Table, Preparing:

-- Equip the Scissor Lift Table:VAS6131B  as follows:

Table Coordinates	Components from Scissor Lift Table - Audi Set:VAS6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting:VAS6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins:VAS6131/12-2  and the Threaded Spindle from Scissor Lift Table - Q7 Set:VAS6131/13
B7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set :VAS6131/13	/11-4
G7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set :VAS6131/13	/11-4
C15	/10-1	/10-2	/10-5	/10-6
F15	/10-1	/10-3	/10-5	/10-7

-- Secure the mounting elements to the scissor lift table by hand.

-- Position the Scissor Lift Table:VAS6131B  horizontally.

• Note the bubble level (sight glass) on support platform.

-- Guide the Scissor Lift Table:VAS6131B  under the engine/transmission assembly.

-- Install the mounting elements from the Scissor Lift Table - Audi Set:VAS6131/10  as shown on the tunnel crossmember.

Courtesy of AUDI

-- Pay attention that the right threaded spindle is completely installed.

-- Position the mounting elements from Scissor Lift Table - Audi Set:VAS6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting: VAS6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins: VAS6131/12-2  and the Threaded Spindle -1- from the Threaded Spindle from Scissor Lift Table - Q7 Set:VAS6131/13  to the left and right as shown.

Courtesy of AUDI

-- Install the bolt -arrow- for the engine mount all the way on the adapter.

-- Rotate the remaining mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the Scissor Lift Table:VAS6131B  .

-- Disengage the Engine Support Bridge - Spindle:10-222A/11

-- Remove the bolts -arrows- on the tunnel crossmember (example illustration).

Courtesy of AUDI

-- Lower the Scissor Lift Table:VAS6131B  with the engine/transmission assembly and remove from under the vehicle.
