Wheel Bearing In Curb Weight Position, Lifting Vehicles With Coil Spring

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

All bolts on chassis components with bonded rubber bushings must be tightened in curb weight position. Refer to VEHICLES WITH COIL SPRINGS, CHECKING THE CURB WEIGHT POSITION FOR AXLE ALIGNMENT .

Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position).
Otherwise, the bonded rubber bushing will have tension, which will reduce the service life.
By raising the corresponding suspension using the Engine and Gearbox Jack:VAS 6931 and Support Device:VAS 6931/1 , this position can be simulated on the hoist.

Special tools and workshop equipment required

Engine and Gearbox Jack:VAS 6931

Fig 1: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI
Support Device:VAS 6931/1 , not illustrated
Tensioning Strap:T10038

Fig 2: Identifying Tensioning Strap T10038
Courtesy of AUDI

Procedure

-- Determine the curb weight position. Refer to VEHICLES WITH COIL SPRINGS, CHECKING THE CURB WEIGHT POSITION FOR AXLE ALIGNMENT .

-- Note the measurement. This will be needed when tightening the bolts/nuts.

WARNING:

Risk of accident due to the vehicle sliding off the hoist.

When lifting the vehicle on the hoist, the spring force of the air suspension remains in full effect. To bring the wheel bearing to the standard vehicle height, the spring force of the air suspension must be completely removed by bleeding the system.

Before the respective suspension is lifted, the vehicle must be tied down to the hoist lifting arms with the Tensioning Strap:T10038 .

-- Remove the wheel. Refer to WHEELS AND TIRES .

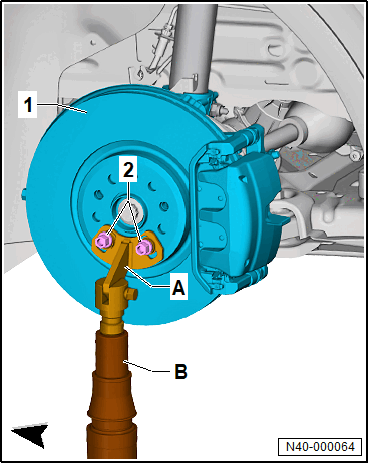

-- Install the Support Device:VAS 6931/1 -A- to the brake rotor -1- using two wheel bolts -2-.

Courtesy of AUDI

-- Position the Engine and Gearbox Jack:VAS 6931 -B- on the support device.

-- Lift the wheel bearing housing, until the dimension -a- has been reached.

Fig 3: Determining Height Dimension -a-

Courtesy of AUDI

WARNING:

Risk of accident!

Do not lift or lower the vehicle when the Engine and Gearbox Jack is under the vehicle.
Do not leave the Engine and Gearbox Jack under the vehicle any longer than necessary.

-- Tighten the applicable bolts and nuts.

-- Lower the wheel bearing housing.

-- Move the Engine and Gearbox Jack:VAS 6931 to the side.

Tightening Specifications

Refer to WHEELS AND TIRES
