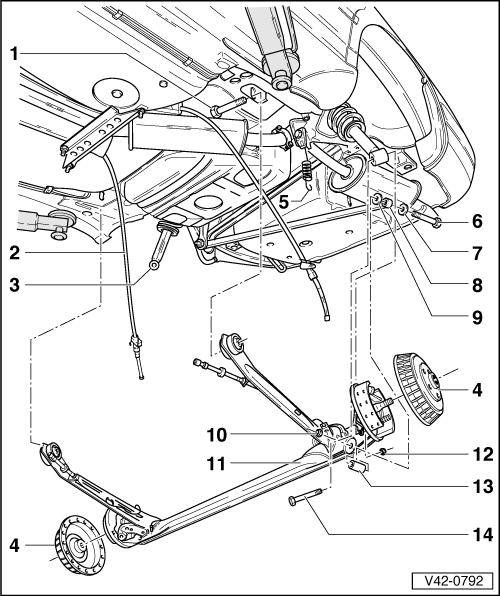

Rear Axle: Notes
- Bolt and washer assembly
- 110 Nm (81 ft lb)
- Tighten with vehicle standing on its wheels
- Parking brake cable
- Suspension strut
- Brake disc
- Remove before removing rear axle
- Drum brake shown - not applicable to USA/Canada
- Brake pressure regulator spring
- Remove at rear axle
- Bolt
- Washer
- Diagonal strut
- Washer
- Self-locking nut
- Always replace
- 95 Nm (70 ft lb)
- Rear axle
- Removing and installing Removing
- Self-locking nut
- Always replace
- 95 Nm (70 ft lb)
- Tighten with vehicle standing on its wheels
- Bushing
- Not applicable to USA/Canada
- Bolt
