Shock Absorber: Installing

-- Install shock absorber.

-- Install threaded cap together with cover cap.

Courtesy of AUDI OF AMERICA, LLC

-- Reach between spring coils and install the boot carefully on threaded cap.

-- Install individual parts.

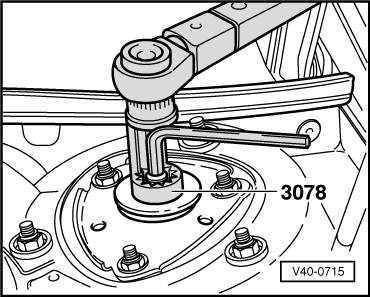

-- Tighten nut using torque wrench and Special Wrench 22mm:3078  .

Courtesy of AUDI OF AMERICA, LLC

Tightening torque: 60 Nm (44 ft lb)
