Removal And Installation: SUBFRAME: Notes
Engine, Supporting

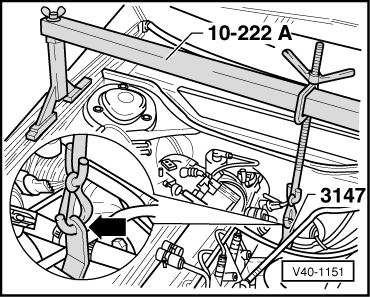

Vehicles with 5-cylinder engine
-- Remove distributor cap.
-- Remove top left engine-to-transmission bolt.
-- Set engine support bridge:10-222A on fender ridge.
-- Install transmission holder :3147 .
-- Tighten spindles slightly.

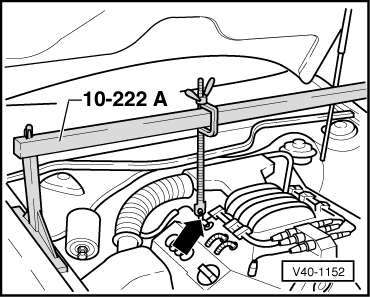

Vehicles with 6-cylinder engine
-- Remove spindles from engine support bridge:10-222A .
-- Install hook on engine as shown, install spindles on engine support bridge, align and fasten support bridge on vehicle.
-- Tighten spindle slightly.
-- Put transmission holder :3147 into hole provided in housing (arrow) and engage hook on support bridge.
-- Tighten spindles of support bridge slightly.
