Coil Springs: Removing

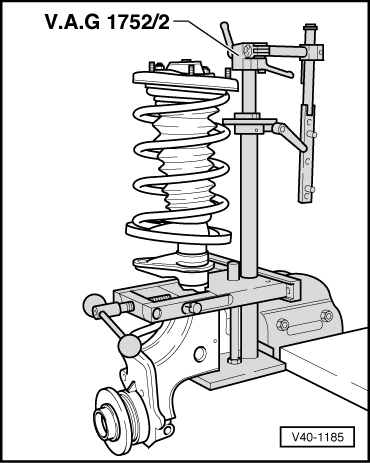

-- Clamp strut holder :VAG1752/2  in vise.

-- Install strut in strut holder :VAG1752/2  .

Courtesy of AUDI OF AMERICA, LLC

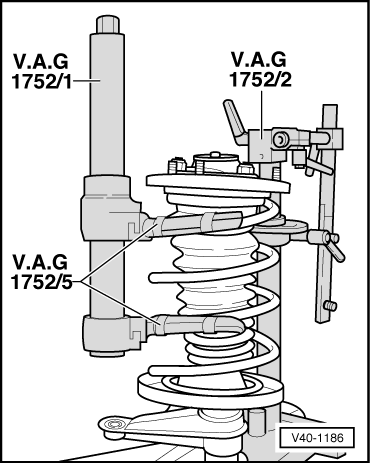

-- Compress coil spring with spring compressor:VAG1752/1  .

Courtesy of AUDI OF AMERICA, LLC

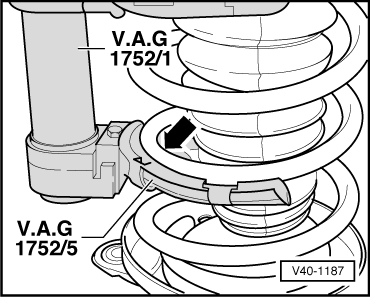

-- Make sure coil spring is correctly seated on spring holder :VAG1752/5  (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Remove self-locking nut.

Courtesy of AUDI OF AMERICA, LLC

-- Remove individual parts from coil spring.

-- Remove compressed spring along with spring compressor:VAG1752/1  .

After spring has been removed:

-- Release tension.
