Front Suspension (Description - Assembly) (4A2 & 4A5)
>>
40 Front Suspension
>>
Disassembly And Assembly
>>
Suspension Strut
>>

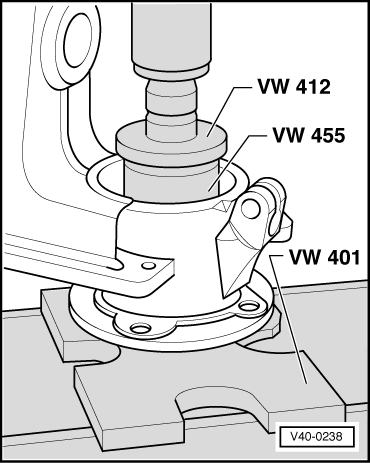

Fig. 2 Pressing in wheel hub
Fig. 2 Pressing in wheel hub
Courtesy of AUDI OF AMERICA, LLC
NOTE:
When pressing in wheel hub, tool Thrust Tube
:VW455
must support only the inner bearing race.
