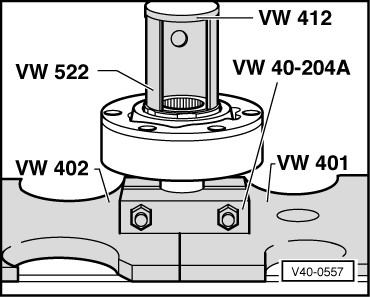

Fig. 2 Installing inner CV joint

GWWV40-0557Courtesy of AUDI OF AMERICA, LLC

-- Press CV joint on to stop.

-- Install circlip.

WARNING:

Chamfer on inner diameter of ball hub (splines) must point toward collar of shaft.
