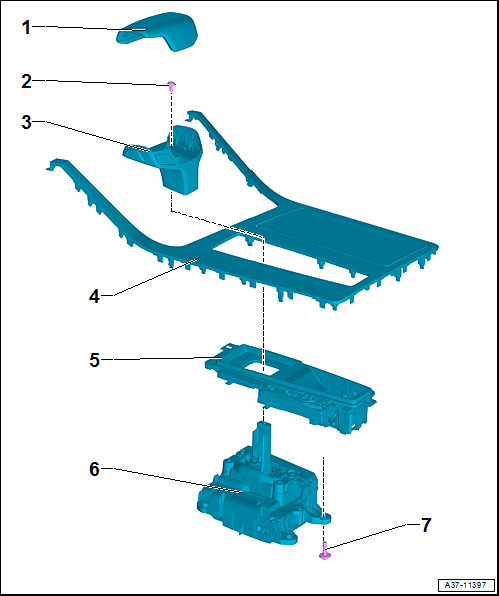

Overview - Selector Mechanism, Vehicles Without Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

1. Selector Lever Handle, Upper Section
   • Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
2. Bolt
   • 3.2 Nm
   • Not available separately
3. Selector Lever Handle, Lower Section
   • With the following integrated components:
     • Selector Lever Release Button -E681-
     • Parking Lock Button -E816-
   • The components cannot be replaced separately if faulty.
   • Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
4. Center Console Decorative Trim
5. Selector Lever Transmission Range Display -Y5-
   • Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CENTER CONSOLE LAMPS .
6. Shift Mechanism
   • With the following integrated components:
     • Selector Lever -E313-
     • Selector Lever Position Sensor -G727-
     • Transverse Selector Lever Lock Sensor -G868-
     • Selector Lever Sensor System Control Module -J587-
     • Shift Lock Solenoid -N110-
     • Transverse Selector Lever Lock Motor -V577-
   • The components cannot be replaced separately if faulty.
   • Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
7. Bolt
   • 8 Nm
