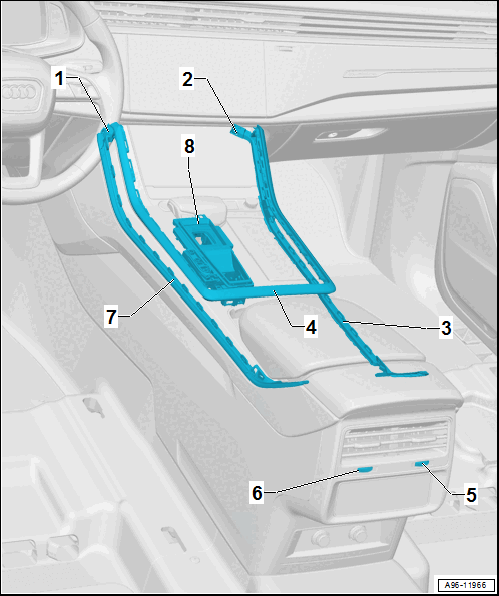

Component Location Overview - Center Console Lamps
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Front Center Console Ambient Lighting Bulb 2 -L194-
- Removing and installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 3 -L193- / -L195-, REMOVING AND INSTALLING .
- Front Center Console Ambient Lighting Bulb 3 -L195-
- Removing and installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 3 -L193- / -L195-, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- Cannot be replaced separately Replace the lower decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- With Front Center Console Ambient Lighting Bulb 1 -L193-
- With Front Center Console Ambient Lighting Bulb 4 -L196-
- Cannot be replaced separately Replace the upper decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Rear Center Air Vent Illumination Bulb -L87-, Right
- Cannot be replaced separately if faulty.
- Replace the rear vent. Refer to OVERVIEW - CENTER CONSOLE .
- Rear Center Air Vent Illumination Bulb -L87-, Left
- Cannot be replaced separately if faulty.
- Replace the rear vent. Refer to OVERVIEW - CENTER CONSOLE .
- Ambient Lighting Fiber-Optic Cable
- Cannot be replaced separately Replace the lower decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Display -Y5-
- Removing and installing. Refer to Selector Lever Transmission Range Display -Y5-, REMOVING AND INSTALLING .
