Overview - Tower Brace

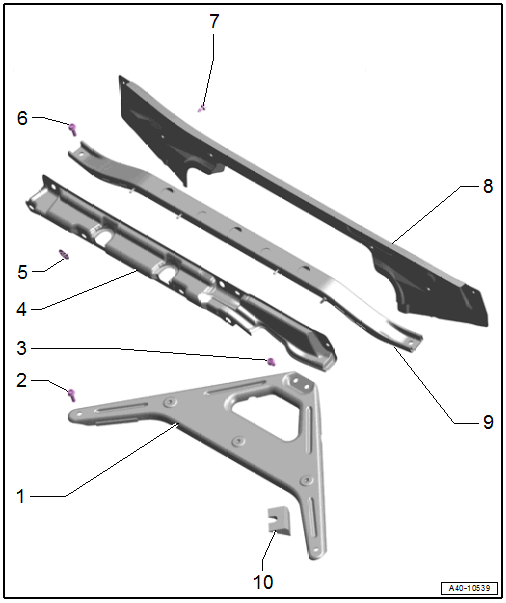

Fig 1: Exploded View Of Tower Brace

Courtesy of AUDI OF AMERICA, LLC

Tower Brace
- Removing and Installing. Refer to TOWER BRACE, REMOVING AND INSTALLING .
Screw
- 35 Nm
Screw
- 35 Nm
Trim Panel
Lock Washer
Bolt
- 25 Nm
Bolt
- Tightening specification. Refer to OVERVIEW - BULKHEAD .
Plenum Chamber End Plate
Additional Reinforcement
- For the tower brace
- Removing and Installing. Refer to TOWER BRACE, REMOVING AND INSTALLING .
Sealing Piece
