Overview - Bulkhead

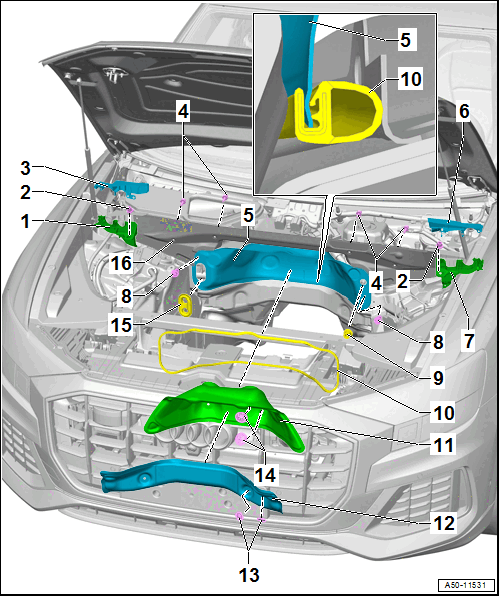

Fig 1: Exploded View Of Bulkhead

Courtesy of AUDI OF AMERICA, LLC

Cover
- Lower, right side
- For the plenum chamber end plate
- Removing and installing. Refer to PLENUM CHAMBER END PLATE LOWER COVER, REMOVING AND INSTALLING, RIGHT SIDE .
Nut
- 3 Nm
- Quantity: 3
Cover
- Upper, right side
- For the plenum chamber end plate
- Removing and installing. Refer to PLENUM CHAMBER END PLATE UPPER COVER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Quantity: 4
Plenum Chamber Bulkhead
- Removing and installing. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Cover
- Upper, left side
- For the plenum chamber end plate
- Removing and installing. Refer to PLENUM CHAMBER END PLATE UPPER COVER, REMOVING AND INSTALLING .
Cover
- Lower, left side
- For the plenum chamber end plate
- Removing and installing. Refer to PLENUM CHAMBER END PLATE LOWER COVER, REMOVING AND INSTALLING, LEFT SIDE .
Bolt
- 10 Nm
- Quantity: 2
Grommet
- For the brake booster vacuum line
Seal
- For the plenum chamber bulkhead
Heat Shield
- Upper
- For the plenum chamber bulkhead
- Removing and installing. Refer to PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
Heat Shield
- Lower
- For the plenum chamber bulkhead
- Removing and installing. Refer to LOWER PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
Clamping Washers
- Quantity: 4
Clamping Washers
- Quantity: 4
Grommet
- For coolant lines
Plenum Chamber End Plate
- Removing and installing. Refer to PLENUM CHAMBER END PLATE, REMOVING AND INSTALLING .
