Sway Stabilization Control Module -J924-, REMOVING AND INSTALLING / Sway Stabilization Control Module -J924- IN RIGHT FRONT WHEEL HOUSING: Removing

-- Remove the right front wheel housing liner rear section. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- De-energize the 48 Volt system. Refer to BATTERY, DISCONNECTING AND CONNECTING .

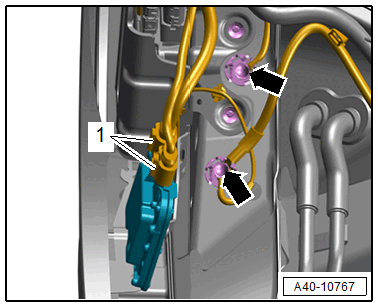

-- Disconnect the connectors -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and free up the ground wires.

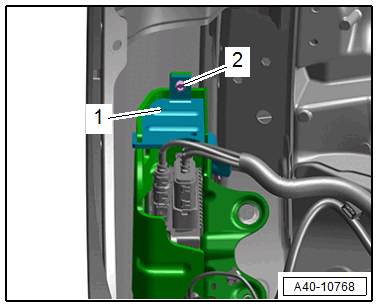

-- Remove the bolt -2- and remove the reinforcement -1-.

Courtesy of AUDI OF AMERICA, LLC

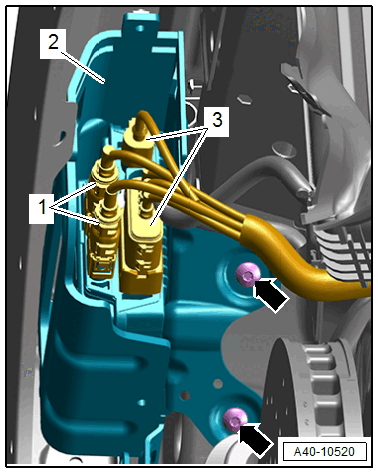

-- Disconnect the connectors -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-, pull out the bracket with the control module forward and remove.

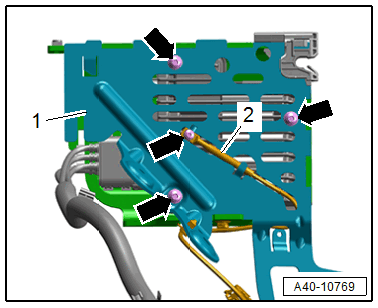

-- Remove the bolts -arrows-, and remove the Sway Stabilization Control Module -J924- -2- from the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC
