Stabilizer Bar, Removing And Installing, With Sway Stabilization: Removing

-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

CAUTION:

There Is a Risk of Injury If the Sway Stabilization Makes Unintended Adjustments.

- Only work on the sway stabilization with the ignition switched off.

-- De-energize the 48 Volt system. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Vehicle with Sway Stabilization Control Module -J924- in Right Front Wheel Housing

-- Remove the right front wheel. Refer to WHEELS AND TIRES .

-- Remove the right front wheel housing liner rear section. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

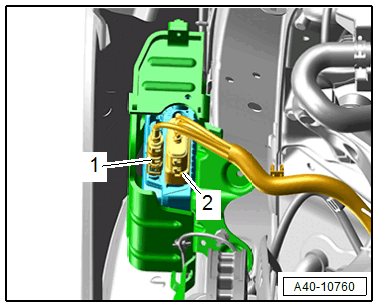

-- Disconnect the connectors -1 and 2- for the Sway Stabilization Control Module -J924-. Free up the wires. Refer to LINE ROUTING AND SECURING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There Is a Risk of Malfunction from Corrosion in the Connector.

- When removing and installing the stabilizer bar with sway stabilization the wiring harness may not be removed from the stabilizer bar with sway stabilization. The connector must not be removed from the stabilizer bar with sway stabilization.

Vehicle with Sway Stabilization Control Module -J924- in Vehicle Interior on Right A-Pillar

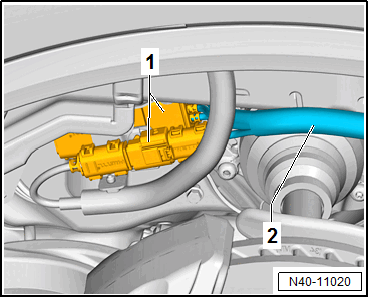

-- Disconnect the connectors -1- from the right longitudinal member.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wire -2- to the stabilizer bar.

CAUTION:

There Is a Risk of Malfunction from Corrosion in the Connector.

Continuation for All Vehicles

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

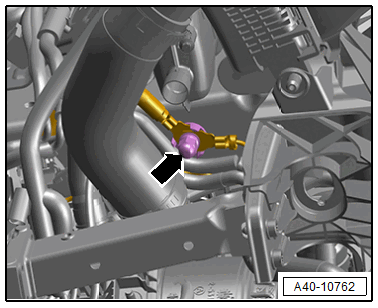

-- Remove the nut -arrow- and free up the sway stabilization ground wire.

Courtesy of AUDI OF AMERICA, LLC

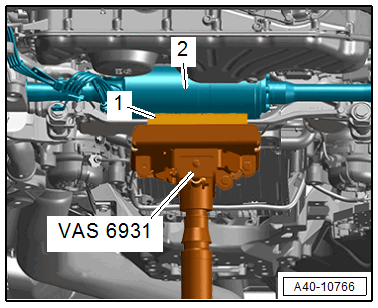

-- Support the stabilizer bar -2- with sway stabilization using the : VAS6931 and place a block of wood -1- underneath.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the left and right threaded connections -1- between the control arm and shock absorber fork.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt and press the shock absorber fork to the side.

-- Remove the left and right bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

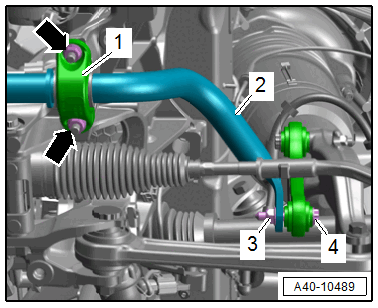

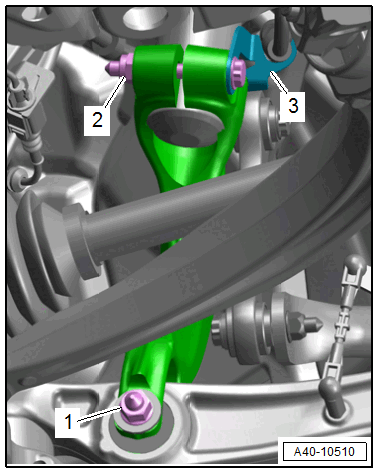

-- Remove the nut -3-.

-- Remove the left and right clamp -1- and bolt -4-.

-- Remove the stabilizer bar -2- with sway stabilization.
