Control Arm, Removing And Installing: Removing

-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING, LIFTING TO CURB WEIGHT POSITION, VEHICLES WITH COIL SPRING .

-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

-- Remove the front wheel. Refer to WHEELS AND TIRES .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- To protect the threads, remove the nut -arrow- from the tie rod end joint pin until it is flush with the joint pin threads.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Abruptly Loosening the Tie Rod End When Removing Increases the Risk of Injury.

It Is Possible That Parts of the Body May Become Bruised.

- Secure the tool with the engine and gearbox jack placed underneath.

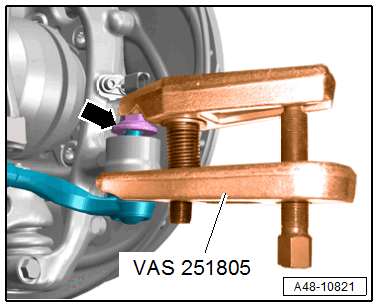

-- Remove the tie rod end with the : VAS251805 from the wheel bearing housing.

-- Remove the nut to do so if necessary counterhold on the joint pin with a 6 mm inner hex socket.

-- Tie up the tie rod.

To prevent the joints on the upper control arm from being damaged, support the wheel bearing housing against too strong rebound.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the wheel hub, until a wheel bolt hole is at the top.

CAUTION:

Risk of Destroying the Wheel Bearing When Installing the Wheel Bolt.

- Install a washer on the wheel bolt so that the wheel bolt does not press again the wheel bearing.

-- Install the : T10149 with a wheel bolt -2- and inserted washer -1- on the wheel hub.

-- Support the wheel bearing housing over the : T10149 using the : VAS6931 .

CAUTION:

There Is a Risk of an Accident When Lowering the Vehicle When the Engine and Gearbox Jack Is Underneath It

- Never lower the vehicle when the engine and gearbox jack is underneath it.

- Never leave the engine and gearbox jack under the vehicle any longer than necessary.

-- Remove the nuts -2- and free up the coupling rod for the vehicle level sensor.

Courtesy of AUDI OF AMERICA, LLC

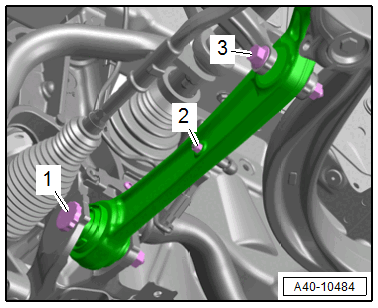

-- Disconnect the threaded connections -1 and 3- for the control arm.

-- Pivot the control arm toward the front.

TIP:

Courtesy of AUDI OF AMERICA, LLC

To remove the bolt -1-, push the steering all the way to the left or right.

-- Remove the screw -2-.

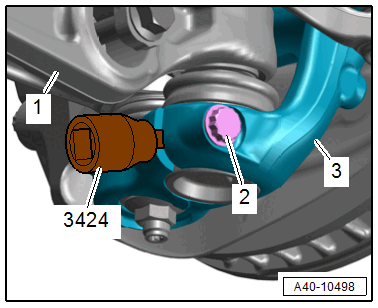

-- Insert the : 3424 into the slit on the wheel bearing housing -3- and turn 90°.

-- Remove the control arm -1- with the ball joint.
