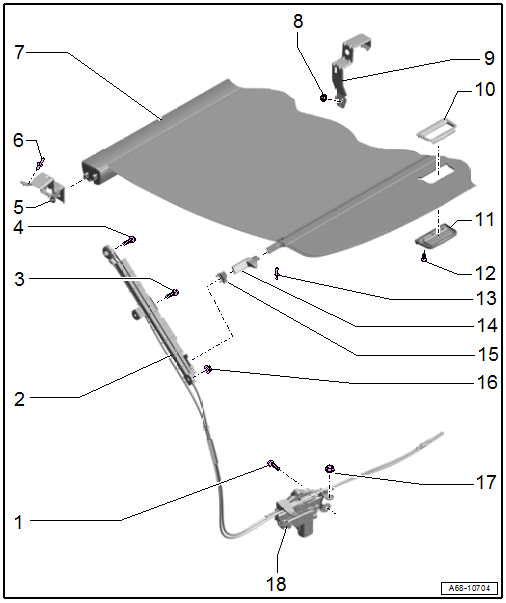

Overview - Luggage Compartment Roll Cover
- Bolt
- 3.5 Nm
- Roll Cover Guide Rail
- Equipped on some models
- Available only together with -item 18-
- Removing and Installing. Refer to Luggage Compartment Cover Drive Unit -VX68-, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Bolt
- 8 Nm
- Left Bracket
- Under the luggage compartment side trim panel
- Removing and Installing. Refer to ROLL COVER BRACKET, REMOVING AND INSTALLING .
- Rivet
- Quantity: 3
- Luggage Compartment Roll Cover
- Nut
- 3.5 Nm
- Quantity: 2
- Right Bracket
- Under the luggage compartment side trim panel
- Removing and Installing. Refer to ROLL COVER BRACKET, REMOVING AND INSTALLING .
- Frame
- For luggage compartment roll cover handle
- Not available separately. Refer to the Parts Information for the repair kit.
- Removing and Installing. Refer to LUGGAGE COMPARTMENT ROLL COVER HANDLE, REMOVING AND INSTALLING .
- Handle
- For luggage compartment roll cover
- Not available separately. Refer to the Parts Information for the repair kit.
- Removing and Installing. Refer to LUGGAGE COMPARTMENT ROLL COVER HANDLE, REMOVING AND INSTALLING .
- Bolt
- 0.35 Nm
- Thread cutting
- Quantity: 2
- Position the bolt by hand and tighten it until it finds the old threads, then tighten the bolt to the tightening specification
- Rivet
- Locking Pin
- Not available separately. Refer to the Parts Information for the repair kit.
- Riveted with roll cover
- Roll Cover Catch
- Clipped into the guide rails
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Nut
- 3.5 Nm
- Nut
- 3.5 Nm
- Quantity: 2
- Luggage Compartment Cover Drive Unit -VX68-
- Equipped on some models
- Available only together with -2-
- Removing and Installing. Refer to Luggage Compartment Cover Drive Unit -VX68-, REMOVING AND INSTALLING .
