Roll Cover Bracket, Removing And Installing
Special tools and workshop equipment required
- Pop Rivet Nut Pliers: VAS5072A
- Hand drill
- 3.5 mm diameter drill bit
- Protective Eyewear
Left Bracket, Removing
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.

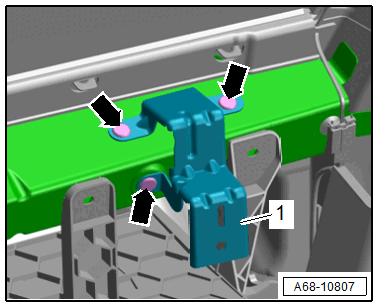

-- Carefully drill the pop rivets -arrows-.
-- Remove the roll cover bracket -1-.
Right Bracket, Removing
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

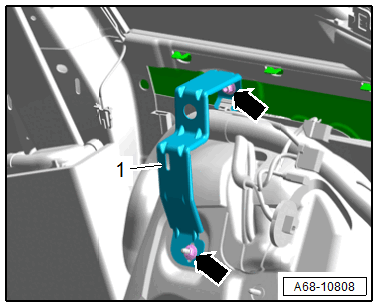

-- Remove the nuts -arrows-.
-- Unclip the wiring harness and remove the roll cover bracket -1-.
Installing
Install in reverse order of removal.
