Center Console Upper Section

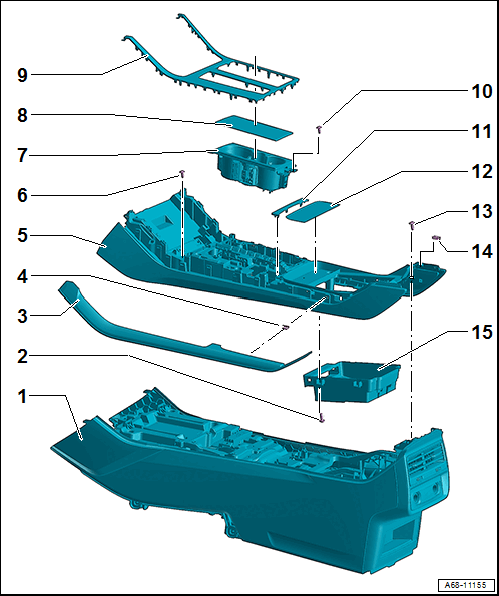

Fig 1: Exploded View Of Center Console Upper Section

Courtesy of AUDI OF AMERICA, LLC

Center Console Lower Section
- Overview. Refer to Center Console Lower Section .
Bolt
- 1.5 Nm
- Quantity: 4
Decorative Trim
- Removing and Installing. Refer to Side Decorative Trims, Removing .
Clip
Center Console Upper Section
- Removing and Installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Different screws are installed on the center console upper section
- M6 x 25, quantity: 3
Cupholder
- Removing and Installing. Refer to CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
Cupholder Trim
- Removing and Installing. Refer to CUPHOLDER TRIM, REMOVING AND INSTALLING .
Decorative Trim
- Removing and Installing. Refer to Upper Decorative Trim, Removing .
Bolt
- 3 Nm
- Quantity: 3
Decorative Trim
- Removing and Installing. Refer to Side Decorative Trims, Removing .
Storage Compartment Insert
- Remove upward
Bolt
- 2 Nm
- Different screws are installed on the center console upper section
- Steel bolt 4.2 x 16, quantity: 5
Clip
Front Center Console Storage Compartment
- Removing and Installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
