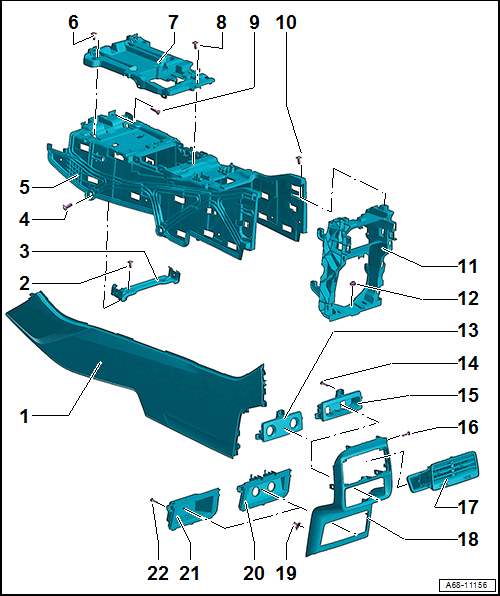

Center Console Lower Section
- Footwell Center Console Trim Panel
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2 each
- Center Console Bracket
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Quantity: 2
- Bolt
- 8 Nm
- Two each on the right and left side
- Center Console Base Carrier
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Different bolts are installed on the securing bracket
- Steel bolt 4.2 x 13, quantity: 4
- Securing Bracket
- Different bolts are installed on the securing bracket
- To remove, unscrew bolts -item ) Center Console Lower Section => List Item: Bolt and -item ) Center Console Lower Section => List Item: Bolt
- Bolt
- 4 Nm
- Different bolts are installed on the securing bracket
- M5 x 16 bolt, quantity: 6
- Bolt
- 4 Nm
- Bolt
- 2.5 Nm
- Quantity: 2
- Support
- To remove, remove the bolts -item ) Center Console Lower Section => List Item: Bolt when the center console base carrier is removed
- Nut
- 20 Nm
- Quantity: 2
- Trim for Sockets
- Equipped on some models
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 3
- Rear A/C Display Control Head -E265- Trim
- Equipped on some models
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Vent
- Removing and Installing. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .
- Rear Trim
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Clip
- Trim for Sockets
- Equipped on some models
- Removing and Installing. Refer to REAR CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Rear Storage Compartment
- Equipped on some models
- Removing and Installing. Refer to REAR CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
