AIR DUCT IN REAR AIR DISTRIBUTION HOUSING "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/9AU

• The rear air distribution housing and the Rear A/C Display Control Head -E265- are optional equipment (only installed on a "Mid" or "Mix" A/C system).
• No doors are installed inside the rear air distribution housing. Doors via which the air flow to the individual vents is regulated are only installed in the vents.
• The air routing and distribution in the passenger compartment in vehicles with a rear A/C system and a rear air distribution housing are identical.

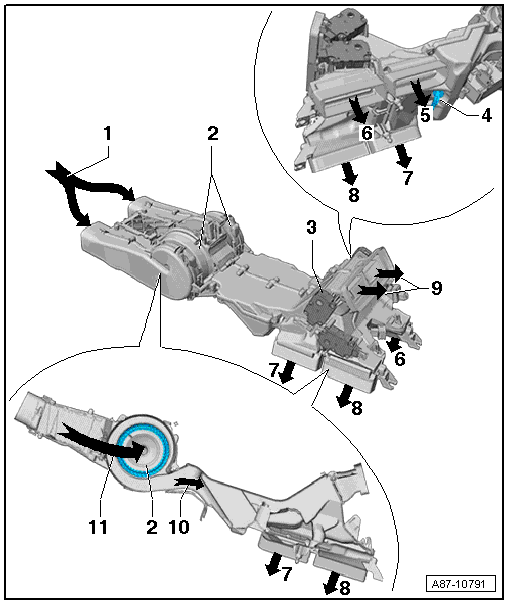

Fig 1: Rear Air Distributor Housing Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

1. Air Intake from Front Heater and A/C Unit in the Rear Air Distribution Housing
2. Rear Fresh Air Blower -V80-
   • Removing and Installing. Refer to Rear Fresh Air Blower -V80-, REMOVING AND INSTALLING .
3. Rear Air Distribution Housing
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - REAR ADJUSTMENT MOTORS "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/9AU .
4. Rear Upper Body Vent Temperature Sensor -G537-
   • Removing and Installing. Refer to Rear Upper Body Vent Temperature Sensor -G537-, REMOVING AND INSTALLING .
5. Air Outlet to the Footwell Vent Under the Right Seat
6. Air Outlet to the Vent in the Right B-Pillar
7. Air Outlet to the Footwell Vent under the Left Seat
8. Air Outlet to the Vent in the Left B-Pillar
9. Air Outlet to the Vent in the Center Console
10. Air Outlet from the Rear Fresh Air Blower -V80- to the Distribution Housing
11. Air Inlet into the Rear Fresh Air Blower -V80-
