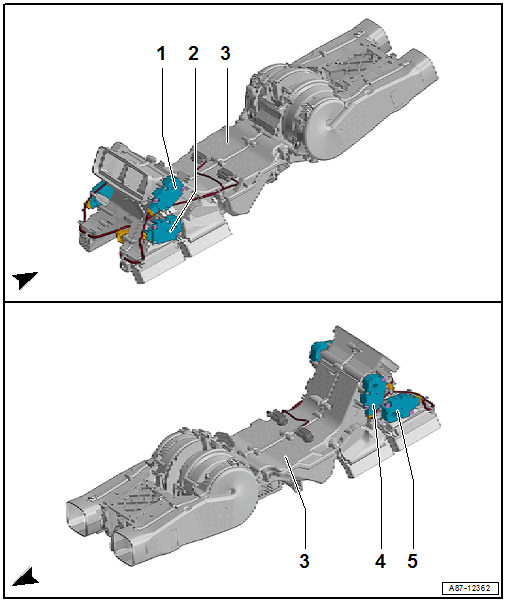

COMPONENT LOCATION OVERVIEW - REAR ADJUSTMENT MOTORS "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/9AU

Courtesy of AUDI OF AMERICA, LLC

1. Right Rear Upper Body Vent Motor -V316-
   • Removing and Installing. Refer to Right Rear Upper Body Vent Motor -V316-, REMOVING AND INSTALLING .
2. Right B-Pillar/Footwell Shut-Off Door Motor -V211-
   • Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211-, REMOVING AND INSTALLING .
3. Rear Air Distribution Housing
   • Overview. Refer to OVERVIEW - REAR ADJUSTMENT MOTORS .
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING, "Mid" OR "Mix" A/C SYSTEM, PR NUMBER KH5/ 9AU .
4. Left Rear Upper Body Vent Motor -V315-
   • Removing and Installing. Refer to Left Rear Upper Body Vent Motor -V315-, REMOVING AND INSTALLING .
5. Left B-Pillar/Footwell Shut-Off Door Motor -V212-
   • Removing and Installing. Refer to Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
