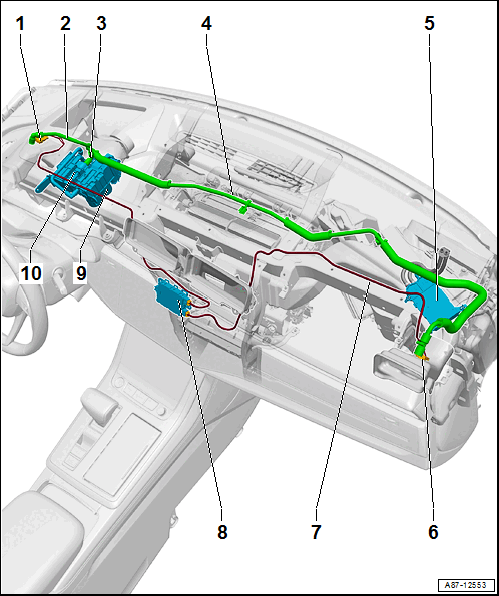

Component Location Overview - Air Ionization

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Ionizer -J1105-
   • Removing and Installing. Refer to Driver Side Ionizer - J1105-, REMOVING AND INSTALLING, Q8 .
2. Hose to Left Air Duct
   • Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
3. Hose to Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
   • Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
4. Hose to Right Air Duct
   • Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
5. A/C System Particulate Matter Concentration Sensor -G930-
   • Installed depending on vehicle equipment
   • Removing and Installing. Refer to A/C System Particulate Matter Concentration Sensor -G930-, REMOVING AND INSTALLING .
6. Front Passenger Side Ionizer -J1106-
   • Removing and Installing. Refer to Front Passenger Side Ionizer -J1106-, REMOVING AND INSTALLING, Q8 .
7. Wiring Harness
   • From the Air Ionization System Control Module -J897- to Driver Side Ionizer -J1105- and Front Passenger Side Ionizer -J1106-
8. Air Ionization System Control Module -J897-
   • Removing and Installing. Refer to Air Ionization System Control Module -J897-, REMOVING AND INSTALLING .
9. Fragrance System Functional Unit -GX43-
   • Contains the following components:
     • Fragrance Diffuser System Actuator -V687-
     • Fragrance Diffuser System Temperature Sensor -G1056-
     • Container with Fragrance 1 --
     • Container with Fragrance 2 --
   • Overview. Refer to OVERVIEW - FRAGRANCE SYSTEM .
   • Removing and Installing. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .
10. Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
    • Overview. Refer to OVERVIEW - FRAGRANCE SYSTEM .
    • Removing and Installing. Refer to Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING .
