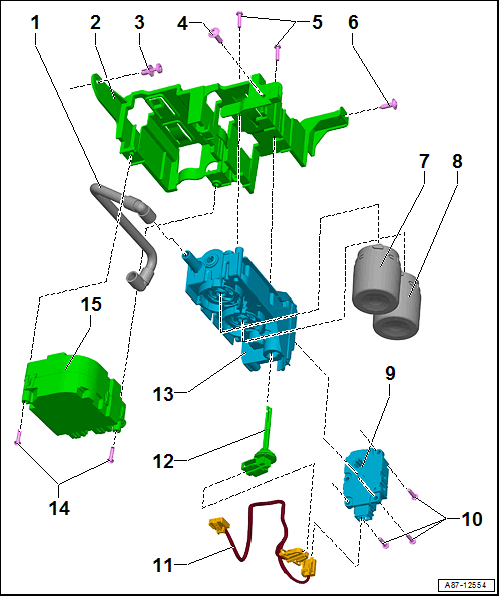

Overview - Fragrance System
- Hose
- Bracket for Fragrance System Functional Unit -GX43- and Air Freshening System Control Module -J1101-
- Expanding Rivet
- Screw
- 3 Nm
- Screw
- 1.1 Nm
- Optional, (service solution if the locking mechanism on the bracket for the Fragrance System Functional Unit -GX43- is faulty). Refer to Parts Information
- Quantity: 2
- Screw
- 3 Nm
- Container with Fragrance 2 --
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to the appropriate service information
- Container with Fragrance 1 --
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to the appropriate service information.
- Fragrance Diffuser System Actuator -V687-
- Removing and Installing. Refer to Fragrance Diffuser System Actuator -V687-, REMOVING AND INSTALLING .
- Screw
- 1.1 Nm
- Quantity: 3
- Wiring Harness
- Fragrance Diffuser System Temperature Sensor -G1056-
- Removing and Installing. Refer to Fragrance Diffuser System Temperature Sensor -G1056-, REMOVING AND INSTALLING .
- Fragrance System Functional Unit -GX43-
- Removing and Installing. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .
- Screw
- 1.1 Nm
- Optional, (service solution, if the locking mechanism on the bracket for the Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686- is faulty). Refer to the Parts Information.
- Quantity: 2
- Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
- They are one component and cannot be separated
- Removing and Installing. Refer to Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING .
