Overview - Rear Window Washer System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

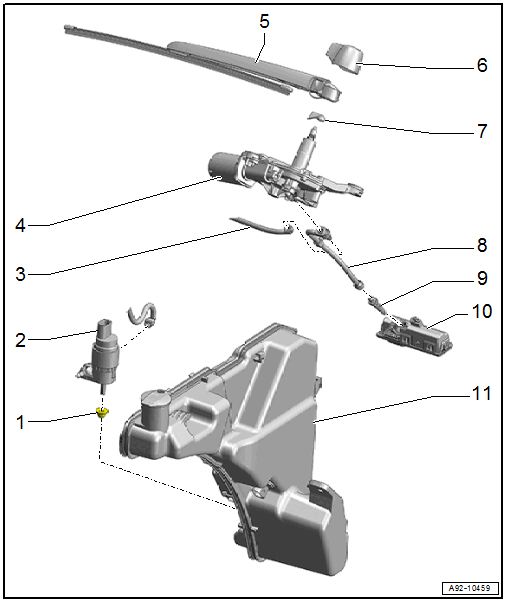

Fig 1: Exploded View Of Rear Window Washer System

Courtesy of AUDI

Grommet
- Replace if damaged
Windshield Washer Pump -V5-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Washer Fluid Hose
- From the window washer pump
Rear Window Wiper Motor -V12-
Windshield Wiper Arm
Rear Window Wiper Cap
Washer Nozzle
- Removing and Installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING, WIPER ARM .
- Adjusting. Refer to WASHER NOZZLE, ADJUSTING .
Washer Fluid Hose
- Equipped on some models
- To the rearview camera/peripheral camera washer nozzle
Washer Nozzle
- Equipped on some models
- Removing and Installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING, HANDLE BUTTON WITH REARVIEW CAMERA .
Handle Button
Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
