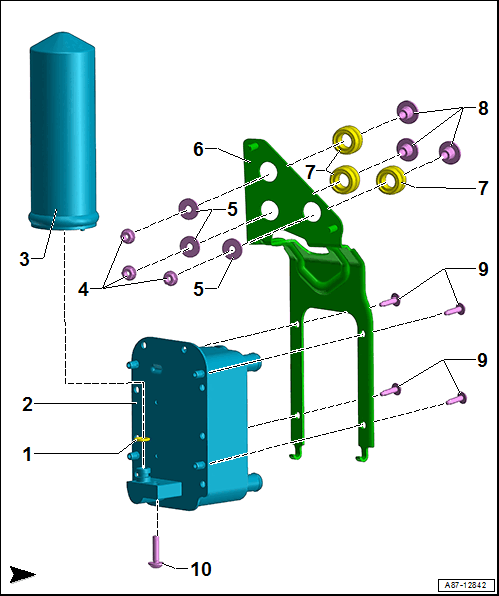

Overview - Heat EXCHANGER For Heat Pump Operation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- Replace after removing. Refer to SEALS AND GASKETS .
- Lubricate lightly with refrigerant oil before installing
- Heat Exchanger for Heat Pump Operation
- Removing and Installing. Refer to HEATER CORE HEAT EXCHANGER, REMOVING AND INSTALLING .
- Refrigerant Receiver
- Removing and Installing. Refer to HEATER CORE HEAT EXCHANGER, REMOVING AND INSTALLING .
- Nut
- 10 Nm
- Washer
- Bracket
- Removing and Installing. Refer to HEATER CORE HEAT EXCHANGER, REMOVING AND INSTALLING .
- Boot
- Guide Sleeve
- Bolt
- 8 Nm
- Bolt
- 8 Nm
