Overview - Condenser

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

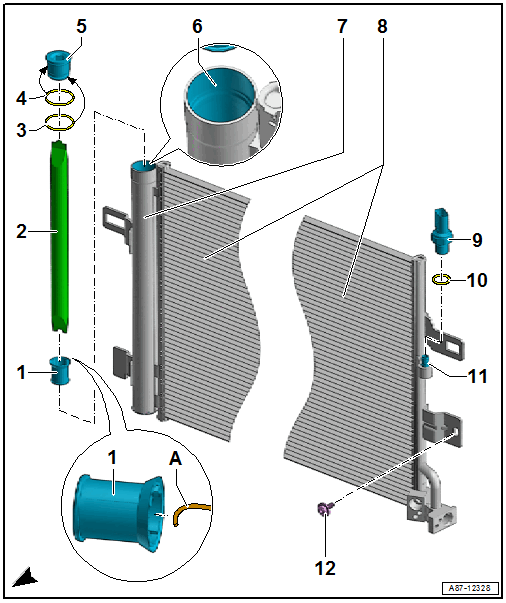

Fig 1: Exploded View Of Condenser, Desiccant Bag/Dryer Cartridge

Courtesy of AUDI

Receiver/Dryer Insert
- There are different versions.
- Insert all the way in the mount in the receiver/dryer on the proper side.
- With screen
- This illustration shows an insert as it is installed on a "Denso" condenser. On a "Showa/Keihin" condenser, an insert with a different contour is installed, however the function and removal and installation is the same.
- Check the receiver/dryer; if there is contamination, clean the refrigerant circuit or replace the condenser, if necessary. Refer to A/C System, General Information or REFRIGERANT CIRCUIT, CLEANING .
- Pull the insert using a suitable hook -A- (for example 3 mm welding wire) from the receiver/dryer.
Desiccant Bag
- There are different versions. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
O-Ring
- Replace after removing. Refer to the appropriate Parts Information for the version.
- Coat with refrigerant oil before installing. Refer to SEALS AND GASKETS .
O-Ring
- Replace after removing. Refer to the appropriate Parts Information for the version.
- Coat with refrigerant oil before installing. Refer to SEALS AND GASKETS .
Plug with Filter Element
- Keihin: 5 Nm
- Denso: 2 Nm
- Replace after removing.
- There are different versions.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
Sealing Surfaces in the Receiver/Dryer
- Check for contamination or damage
Receiver/Dryer
- Receiver/dryer is a component of the condenser
- There are different versions. Refer to the appropriate Parts Information.
- Desiccant Bag, Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
Condenser
- There are different versions. Refer to the appropriate Parts Information.
- Refrigerant Lines, Removing and Installing. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER .
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
High Pressure Sensor -G65-
- 5 Nm
- No present on high-voltage vehicles
- Removing and Installing. Refer to High Pressure Sensor -G65-, REMOVING AND INSTALLING .
O-Ring
- Replace after removing. Refer to the appropriate Parts Information for the version.
- Coat with refrigerant oil before installing. Refer to SEALS AND GASKETS .
- No present on high-voltage vehicles
Connection with Valve
- No present on high-voltage vehicles
Screw
- 8 Nm
- Not installed on all models
