A/C Pressure/Temperature Sensor 2 -G826-, REMOVING AND INSTALLING: Installing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

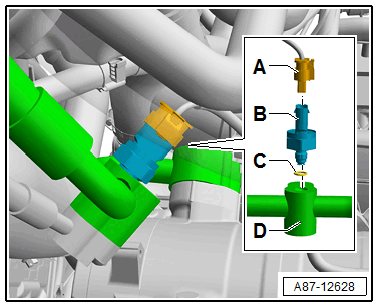

-- Replace the O-ring -C- and lightly coat the O-ring with refrigerant oil before installing. Refer to SEALS AND GASKETS .
-- Install the sensor -B- and tighten.
-- Evacuate and fill the refrigerant circuit. Refer to Refrigerant Circuit or Working with A/C Service Station .
-- Initiate the basic setting of the A/C system through the Thermal Management Control Module -J1024- and activate the power-controlled valves using one of the routines stored there. "Charge/flush the refrigerant circuit stop routine" using the Vehicle Diagnostic Tester.
-- If the A/C Pressure/Temperature Sensor 2 -G826- is replaced, perform an addressing.
