Engine, Removing From Scissor Lift Table
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Lifting Tackle: 3033
- Shop Crane: VAS6100
- Lift Arm Extension: VAS6101
Procedure
NOTE:
The engine may only be transported in the manner described and without the transmission.
- Engine/transmission assembly removed and separated on the : VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .

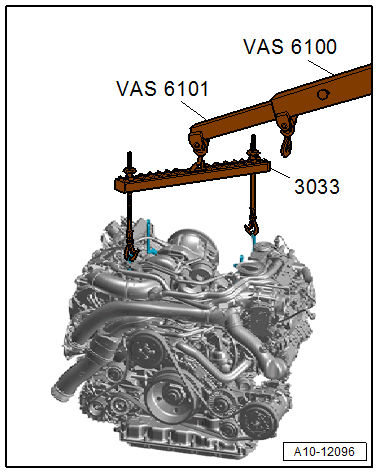

-- Attach the : VAS6101 to the : VAS6100 .
-- Engage the : 3033 on the engine lifting eyes and on the shop crane as shown.

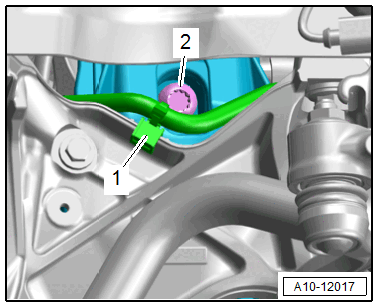

-- Remove the left and right bolts -2-. (Shown on the installed engine.)
-- Pry up the engine with the workshop crane.
