Overview - Fender

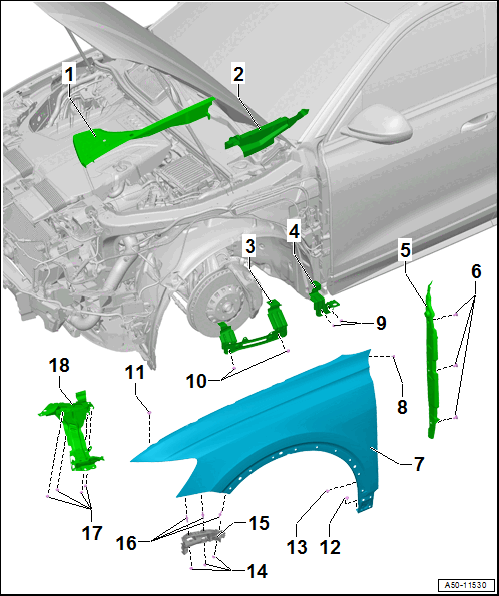

Fig 1: Exploded View Of Fender

Courtesy of AUDI OF AMERICA, LLC

Cover
- Front
- For the fender
- Removing and installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .
Cover
- Rear
- For the fender
- Removing and installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
Bracket
- Center
- For the fender
- Removing and installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING, CENTER .
Bracket
- Rear
- For the fender
- Removing and installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING, REAR .
End Panel
- Removing and installing. Refer to END PLATE, REMOVING AND INSTALLING .
Expanding Rivet
Fender
- Removing and installing. Refer to FENDER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
Bolt
- 10 Nm
- Quantity: 2
Bolt
- 10 Nm
- Quantity: 2
Bolt
- 10 Nm
- Quantity: 5
Bolt
- 10 Nm
- Quantity: 2
Bolt
- 10 Nm
- Quantity: 3
Nut
- 4 Nm
- Quantity: 5
Mount
- For the bumper cover
- To secure the headlamp
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Double Bolt
- 10 Nm
- Quantity: 3
Bolt
- 10 Nm
- Quantity: 4
Fender Brace
- Removing and installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
