Undamaged Rear Window, Removing, Security

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .
Required Tools and Materials for Removal and Installation. Refer to REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION .

-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear window wiper motor with the grommet. Refer to REAR WINDOW WIPER MOTOR -V12-, REMOVING AND INSTALLING .

-- Remove the spoiler. Refer to OVERVIEW - SPOILER .

-- Remove the side spoiler. Refer to SIDE SPOILER, REMOVING AND INSTALLING .

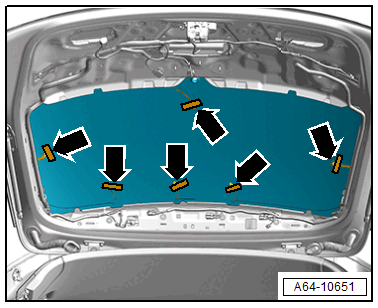

-- Disconnect the connectors and secure to the window glass using adhesive tape -arrows-.

Courtesy of AUDI

-- Equipment versions with power rear lid opener: remove the fuse for the Rear Lid Drive Unit -VX69- or Rear Lid Drive Unit 2 -VX77-. Refer to the appropriate Wiring Diagram.

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

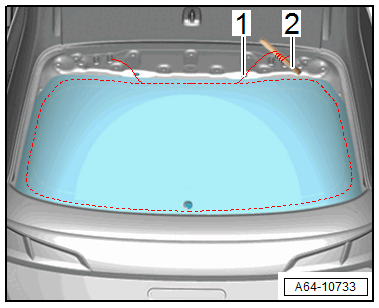

-- Wrap the cutting cord -1- around a handle for example Bonded Window Tool Kit - Pull Handle:V.A.G 1351/1 , -2-.

Courtesy of AUDI

-- Cut free in the upper area of the rear window.

-- Secure the top of the rear window with adhesive tape.

-- Completely cut free the rear window.

-- Lift the rear window with two suction lifters from the vehicle.
