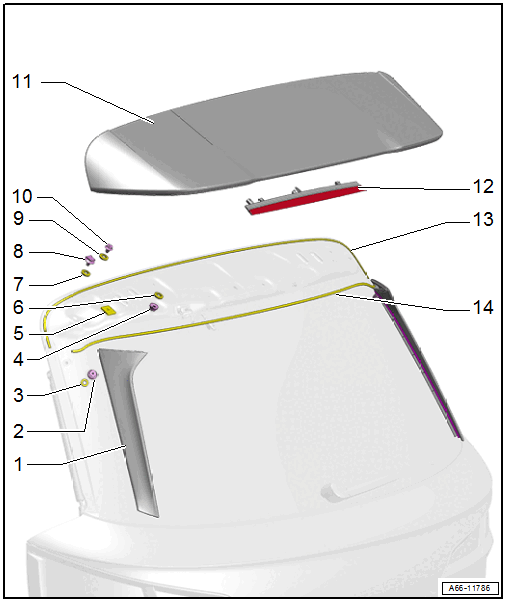

Overview - Spoiler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Side Spoiler
- Replace after removing
- Removing and Installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
- Clip
- Foam Seal
- Nut
- Quantity: 4
- 4 Nm
- Foam Seal
- For the securing pin
- Quantity: 3
- Foam Seal
- Quantity: 4
- Foam Seal
- Quantity: 2
- Clip
- Quantity: 2
- Foam Seal
- Quantity: 5
- Clip
- Quantity: 5
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- High-Mounted Brake Lamp
- Overview. Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP .
- Front Foam Seal
- Rear Foam Seal
