Side Spoiler, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Check the foam seal -2- for damage.
- The vehicle and the spoiler must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Clean the adhesive surfaces with Cleaning Solution:D 009 401 04 and let dry.

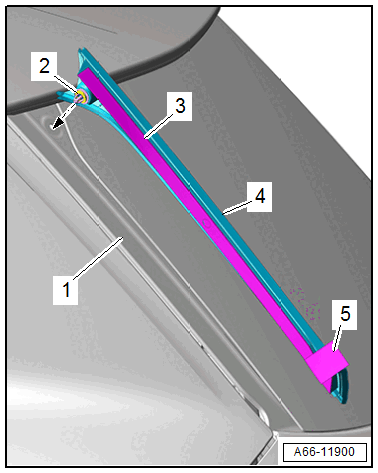

-- Fold back the ends of the protective film, or attach a pulling aid -5- to the protective film -3-.
-- Align the spoiler -4- on the rear lid -1- while paying attention to the adjustment dimension ADJUSTMENT DIMENSIONS .
-- Remove the protective film from the adhesive tape.
-- Push on the spoiler until it engages audibly on the rear lid.
-- Push the entire length of the spoiler on using the Roller:3356 .
- Resting time approximately 30 minutes at room temperature
