Hinges, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Vehicles with pedestrian protection: disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front lid. Refer to HOOD, REMOVING AND INSTALLING .
-- If required, remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Vehicles with pedestrian protection: remove the pedestrian protection trigger. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Bring the hinge into the "closed" position.
-- Mark the hinge installation position for reinstallation.

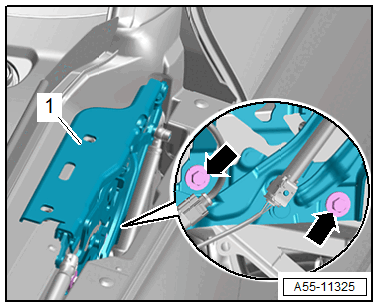

-- Remove the bolts -arrows-.
-- Remove the hinge -1-.
