Overview - Bulkhead

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

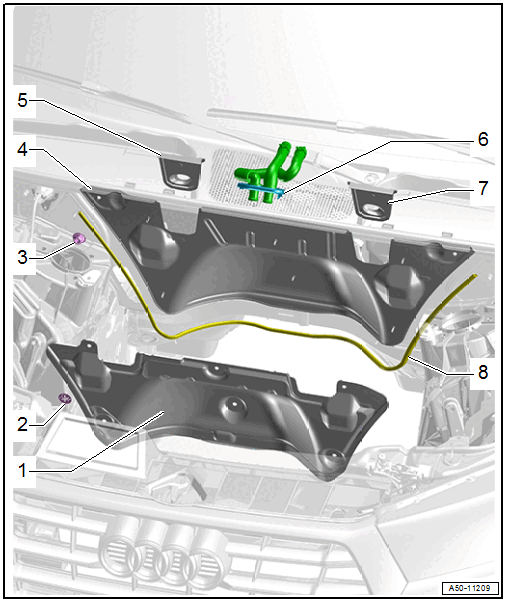

Heat Shield
- Overview. Refer to COMPONENT LOCATION OVERVIEW - HEAT SHIELD .
Lock Washer
- Quantity: 6
Nut
- Quantity: 2
- 8 Nm
Plenum Chamber Bulkhead
- Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Right Pass-Through
- For the tower brace
Pass-Through
- For coolant lines
- Equipped on some models
- Cannot be removed when the plenum chamber bulkhead is installed. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Left Pass-Through
- For the tower brace
Seal
- For the plenum chamber bulkhead
