Component Location Overview - Heat Shield
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

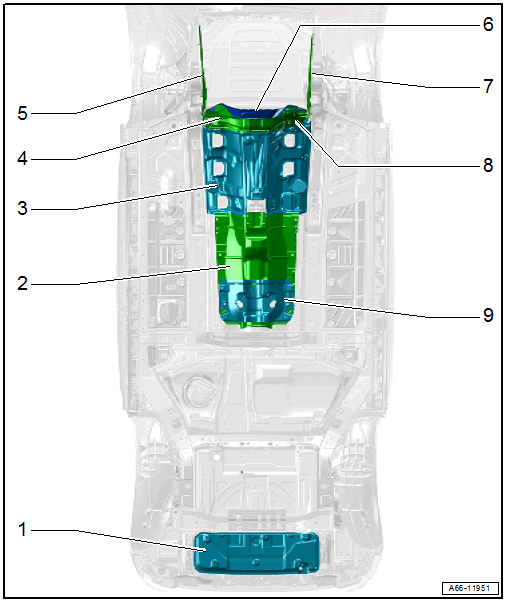

- Heat Shield
- For the rear muffler
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
- Nut: 2 Nm
- Heat Shield
- For the tunnel rear
- Removing and Installing. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .
- Heat Shield
- For the front of the tunnel
- Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .
- Nut: 2 Nm
- Heat Shield
- For the rear longitudinal member
- Right
- Removing and Installing. Refer to REAR HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the front longitudinal member
- Right
- Removing and Installing. Refer to FRONT HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt: 10 Nm
- Heat Shield
- For the plenum chamber bulkhead
- Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
- Version with nut: 2 Nm
- Heat Shield
- For the front longitudinal member
- Left
- Removing and Installing. Refer to FRONT HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the rear longitudinal member
- Left
- Removing and Installing. Refer to REAR HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the driveshaft
- Removing and Installing. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
