Suspension Strut, Servicing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Because of different shock absorber valve systems, only install new shock absorbers from the same manufacturer on both axles, if possible.

Special tools and workshop equipment required

Spring Compressor Kit:V.A.G 1752

Fig 1: Spring Compressor Kit
Courtesy of AUDI
Shock Absorber Set:T10001

Fig 2: 18 mm socket from the Shock Absorber Set
Courtesy of AUDI

Remove the Coil Spring.

Fig 3: Spring Tensioner VAG 1752/1

Courtesy of AUDI

Suspension strut is removed. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .

-- Tension the Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1 -1- in a vise with jaw protectors.

Fig 4: Spring Compressor Kit

Courtesy of AUDI

WARNING:

Risk of accident!

Make sure that the coil spring is seated correctly -arrow- in the Spring Compressor Kit - Spring Retainer w/Inserts:V.A.G 1752/6 .

Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1
Spring Compressor Kit - Spring Retainer w/Inserts:V.A.G 1752/6

-- Arrange the special tools as shown:

Fig 5: Removing Coil Spring

Courtesy of AUDI

Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1
Ratchet (commercially available)
Shock Absorber Set - Extension SW6:T10001/7
Shock Absorber Set - Reversible Ratchet:T10001/11
Shock Absorber Set - Socket:T10001/3
Spring Compressor Kit - Spring Retainer w/Inserts:V.A.G 1752/6

-- Pretension the coil spring in the spring tensioner, until the upper spring plate and the spring support are disengaged.

-- Pull off the cover.

-- Remove the nut from the piston rod.

-- Remove the individual components of the suspension strut and coil spring using the spring tensioner.

Shock Absorber, Replacing

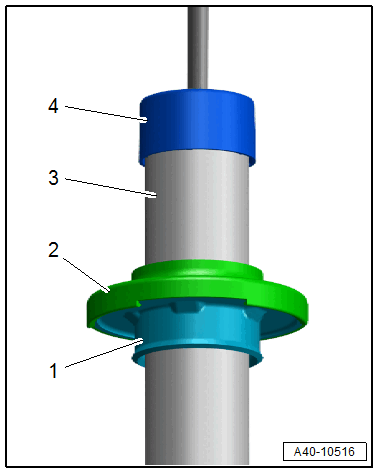

Fig 6: Shock Absorber

Courtesy of AUDI

-- Remove the cap -4- and the lower spring support -2-.

-- Loosen the spring plate -1- using a plastic mallet and remove upward from the shock absorber -3-.

Coil Spring, Installing

-- Tap the spring plate -1- onto the new shock absorber -3- using a plastic mallet.

-- Position the lower spring support -2- and the cap -4-.

-- Position the pretensioned coil spring on the lower spring support.

-- Position the individual suspension strut components.

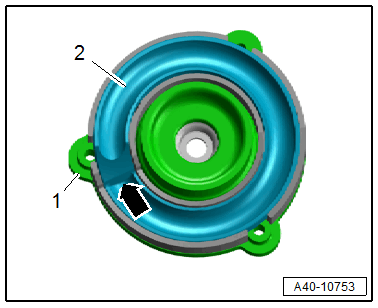

-- Position the strut mount -1- with the spring support -2- on the pretensioned spring so that the spring support rests against the end of the coil spring -arrow-.

Courtesy of AUDI

Permitted maximum play: 2 mm.

-- Release the tension on the Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1

NOTE:

When releasing the tension, make sure the upper end of the spring rests on the spring support stop.

Tightening Specifications

Refer to OVERVIEW - SUSPENSION STRUT COIL SPRING
