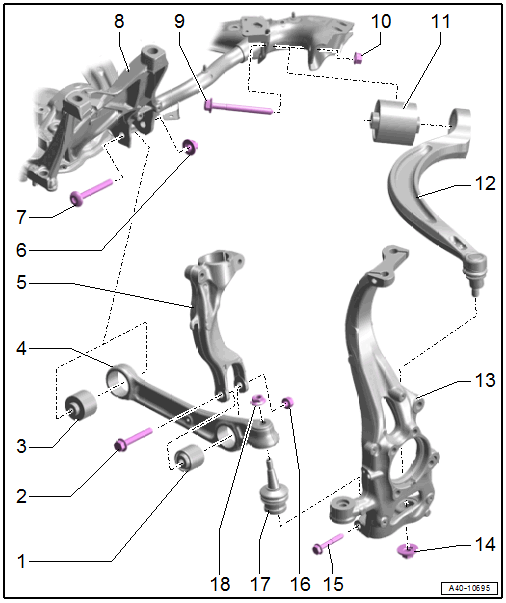

Overview - Lower Control Arm And Ball Joint
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Bearing Housing Side Bonded Rubber Bushing
- Replacing. Refer to CONTROL ARM BALL BEARING, REPLACING, WHEEL BEARING HOUSING SIDE .
- Bolt
- Replace after removing
- Subframe Side Bonded Rubber Bushing
- Replacing. Refer to CONTROL ARM BEARING, REPLACING, SUBFRAME SIDE .
- Control Arm
- Removing and installing. Refer to CONTROL ARM, REMOVING AND INSTALLING .
- Shock Absorber Fork
- Removing and installing. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
- Nut
- 70 Nm + 180°
- Replace after removing
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Bolt
- Replace after removing
- Subframe
- With crossbrace
- Bolt
- Replace after removing
- Nut
- 70 Nm + 180°
- Replace after removing
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Bonded Rubber Bushing
- Replacing. Refer to GUIDE LINK BONDED RUBBER BUSHING, REMOVING AND INSTALLING .
- Guide Link
- Removing and installing. Refer to GUIDE LINK, REMOVING AND INSTALLING .
- Wheel Bearing Housing
- Nut
- 140 Nm
- Replace after removing
- If reusing the guide link, clean the pin threads of the remaining locking compound residue
- Bolt
- 40 Nm
- Replace after removing
- Nut
- 90 Nm + 90°
- Replace after removing
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Ball Joint
- Removing and installing. Refer to BALL JOINT, REMOVING AND INSTALLING .
- Contact Surfaces, Inserting in Wheel Bearing Housing. Refer to Installing .
- Nut
- 140 Nm
- Replace after removing
- If reusing the ball joint, clean the pin threads from of remaining locking compound residue
