Engine Mount

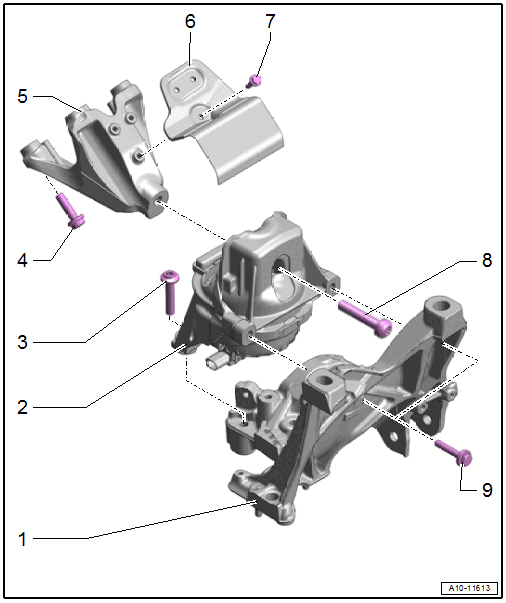

Fig 1: Overview - Subframe Mount

Courtesy of AUDI

Subframe
Engine Mount
- With:
  - Left Electrohydraulic Engine Mount Solenoid Valve -N144-
  - Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 55 Nm
Bolt
- 55 Nm
Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Not Installed
Not Installed
Bolt
- 90 Nm + 90°
- Always replace after removing.
Bolt
- 30 Nm

Transmission Mount

Fig 2: Exploded View Of Transmission Mount

Courtesy of AUDI

Bolt
- Tightening specifications. Refer to the appropriate Service Information. .
Tunnel Crossmember
- Removing and installing. Refer to the appropriate Service Information. .
Nut
- Tightening specifications. Refer to the appropriate Service Information. .
- Only remove when the transmission mount must be separated from the transmission support
Transmission Support
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specifications. Refer to the appropriate Service Information. .
Transmission Mount
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Stop
- For the transmission mount
Bolt
- Tightening specifications. Refer to the appropriate Service Information. .
- Only remove when the transmission mount must be separated from the transmission support
Nut
- Tightening specifications. Refer to the appropriate Service Information. .
- Only remove when the transmission mount must be separated from the transmission support
