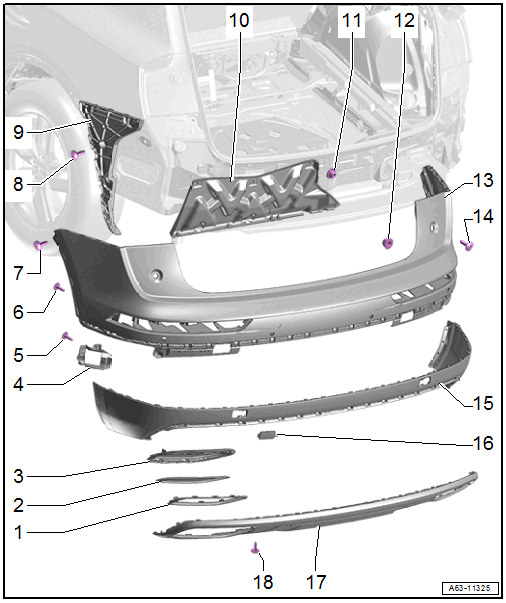

Overview - Bumper Cover, Before Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Trim Molding
- For exhaust system trim
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Exhaust System Trim
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Trim
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Quantity: 3
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Quantity: 3
- 2 Nm
- Bolt
- 2 Nm
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 2.
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Quantity: 3
- 4 Nm
- Nut
- Quantity: 4
- 4 Nm
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 1.5 Nm
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cap
- Left: for the tail lamp bolt
- Right: for the tail lamp bolt and towing eye
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 2 Nm
Bumper Cover Side Mount - Tightening Specification and Sequence
- Tighten the screws -1, 2, 3 and 4- to 3 Nm.
