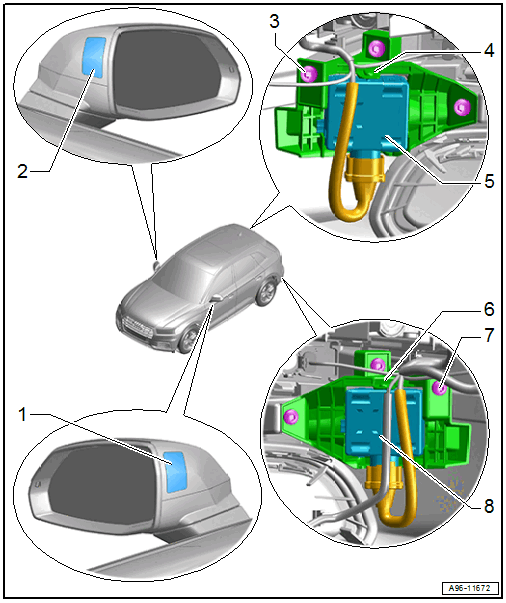

Overview - Lane Change Assistance
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- RHD: is a mirror image
- Removing and Installing. Refer to Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-, REMOVING AND INSTALLING .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- RHD: is a mirror image
- Removing and Installing. Refer to Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 2 Nm
- Bracket
- For lane change assistance control module
- Lane Change Assistance Control Module -J769-
- Removing and Installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Bracket
- For lane change assistance control module
- Bolt
- Quantity: 3
- 2 Nm
- Lane Change Assistance Control Module 2 -J770-
- Removing and Installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
