Impact Member Mount, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the impact member. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
-- Remove the horn bracket. Refer to OVERVIEW - HORN .
-- Remove the bolts -arrows-.

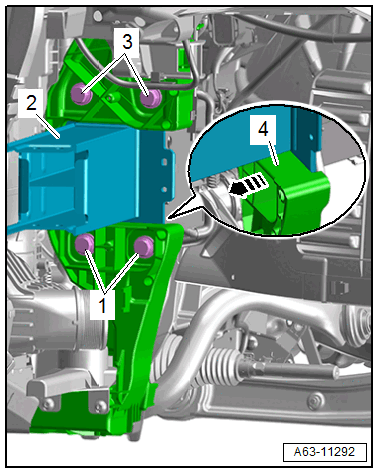

-- Remove the bolts -1 and 3-.
-- Pull the lock carrier -4- slightly forward in the direction of -arrow- and remove the impact member mount -2- to the side.
