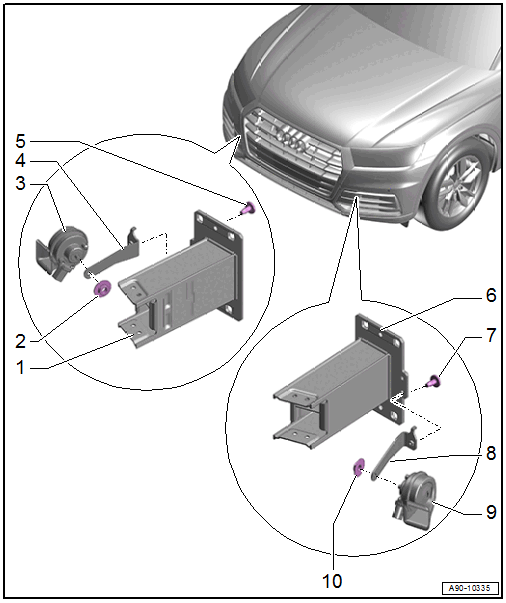

Overview - Horn
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Right Mount
- For impact member
- Nut
- 11 Nm
- High Tone Horn -H2-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Bracket
- For the right horn
- Removing and Installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Left Mount
- For impact member
- Bolt
- 8 Nm
- Bracket
- For the left horn
- Removing and Installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
- Low Tone Horn -H7-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Nut
- 11 Nm
