Overview - Rear Seat Belt Latch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

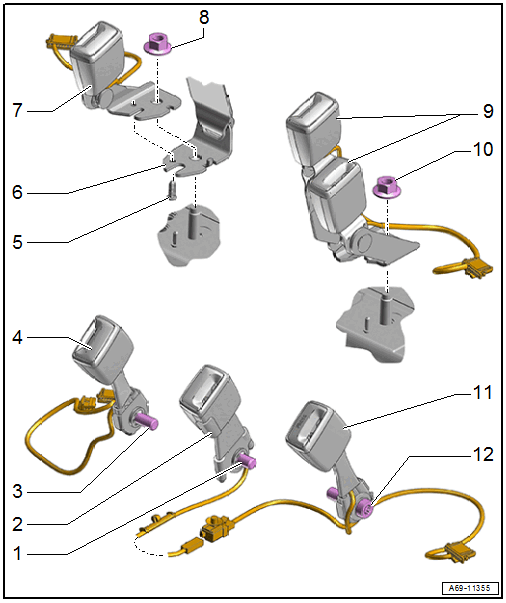

Fig 1: Exploded View Of Rear Seat Belt Latch

Courtesy of AUDI

Bolt
- Available only with -2-
- 40 Nm
Center Seat Belt Latch
- Equipped on some models: single seats
- Available only with -1-.
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SINGLE SEATS
- Always replace if the belt tensioner has deployed when the belt is buckled
Bolt
- Available only with -4-
- 40 Nm
Right Seat Belt Latch
- Equipped on some models: single seats
- Available only with -3-
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SINGLE SEATS
- Always replace if the belt tensioner has deployed when the belt is buckled
Clip
Center Rear Belt End Fitting
- Equipped on some models: low rear seat
Right Seat Belt Latch
- Equipped on some models: low rear seat
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when bolting it on
- The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Right and Center Seat Belt Latch
- Equipped on some models: low rear seat
- Only available together
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when bolting it on
- The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Left Seat Belt Latch
- Equipped on some models: single seats
- Available only with -12-.
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SINGLE SEATS
- Always replace if the belt tensioner has deployed when the belt is buckled
Bolt
- Available only with -11-.
- 40 Nm
