Outer Rear Seat Backrest, Removing And Installing, Single Seats: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the single seats. Refer to SINGLE SEATS, REMOVING AND INSTALLING .

-- Left single seat: remove the center folding backrest. Refer to CENTER FOLDING BACKREST, REMOVING AND INSTALLING, SINGLE SEATS .

-- Right single seat: remove the right rear seat belt latch. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SINGLE SEATS .

-- Remove the seat frame trim panels. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the folding backrest release cable. Refer to FOLDING BACKREST RELEASE CABLE, REMOVING AND INSTALLING .

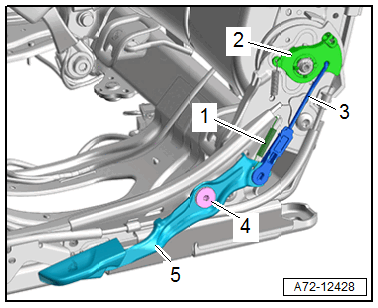

-- Disengage the spring -1-.

Courtesy of AUDI

-- Remove the bolt -4-.

-- Remove the folding backrest lever -5-.

-- Disengage and remove the folding backrest pull rod -3- on the relay lever -2-.

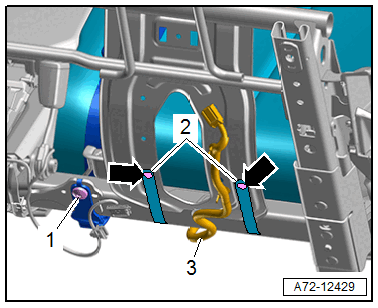

-- If installed, free up the wire -3- for the backrest heating element.

Courtesy of AUDI

-- Unclip the expanding clips -arrows- for the rubber straps -2- for the backrest cover using the Pry Lever:80-200 on the bottom of the seat frame.

-- Left single seat: remove the rear belt end fitting bolt -1- in the center.

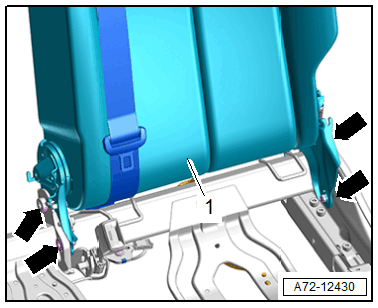

-- Remove the bolts -arrows-.

Courtesy of AUDI

-- Remove the rear seat backrest -1- from the seat frame.
