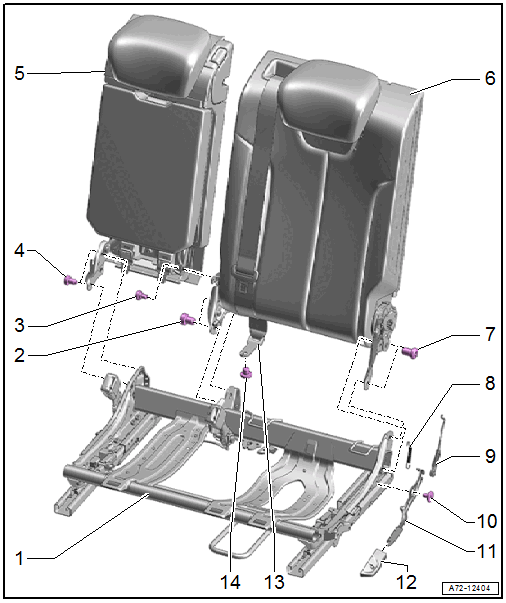

Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Seat Frame
- Refer to OUTER REAR SEAT BACKREST, REMOVING AND INSTALLING, SINGLE SEATS
Bolt
- Quantity: 2
- Self-locking
- Replace after removing
- 25 Nm
Bolt
- Quantity: 2
- Self-locking
- Replace after removing
- 25 Nm
Bolt
- Quantity: 2
- Self-locking
- Replace after removing
- 25 Nm
Center Folding Backrest
- Refer to CENTER FOLDING BACKREST, REMOVING AND INSTALLING, SINGLE SEATS
Left Rear Seat Backrest
Bolt
- Quantity: 2
- Self-locking
- Replace after removing
- 25 Nm
Tension Spring
- For the folding backrest handle
Pull Rod
- For the folding backrest
Bolt
- 18 Nm
Lever
- For the folding backrest
Handle
- For the folding backrest handle
Center Rear Belt End Fitting
- Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
Bolt
- Tightening Specification. Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT .
