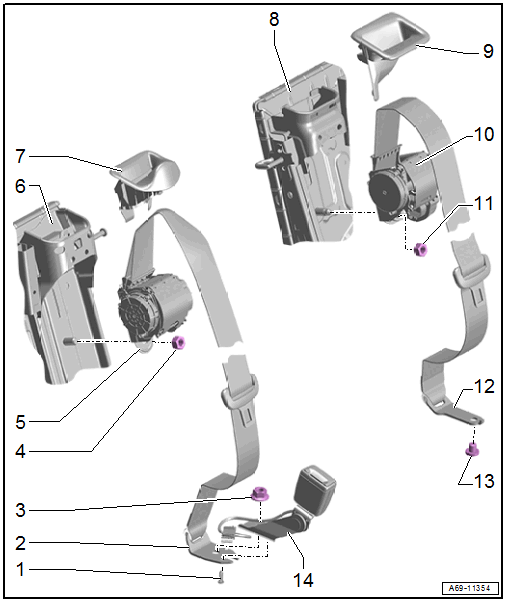

Overview - Center Rear Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Center Rear Belt End Fitting
- Equipped on some models: low rear seat
- Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
- Nut
- Tightening Specification. Refer to OVERVIEW - REAR SEAT BELT LATCH.
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Automatic Belt Retractor in Rear Seat Backrest
- Equipped on some models: low rear seat
- Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING
- Right Rear Seat Backrest
- Low Rear Seat
- Seat Belt Guide in Rear Seat Backrest
- Replace the entire seat belt guide if damaged
- Refer to SEAT BELT GUIDE IN REAR SEAT BACKREST, REMOVING AND INSTALLING
- Left Rear Seat Backrest
- Single seats
- Seat Belt Guide in Rear Seat Backrest
- Replace the entire seat belt guide if damaged
- Refer to SEAT BELT GUIDE IN REAR SEAT BACKREST, REMOVING AND INSTALLING
- Automatic Belt Retractor in Rear Seat Backrest
- Equipped on some models: single seats
- Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Center Rear Belt End Fitting
- Equipped on some models: single seats
- Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 33 Nm
- Right Seat Belt Latch
- Equipped on some models: low rear seat
