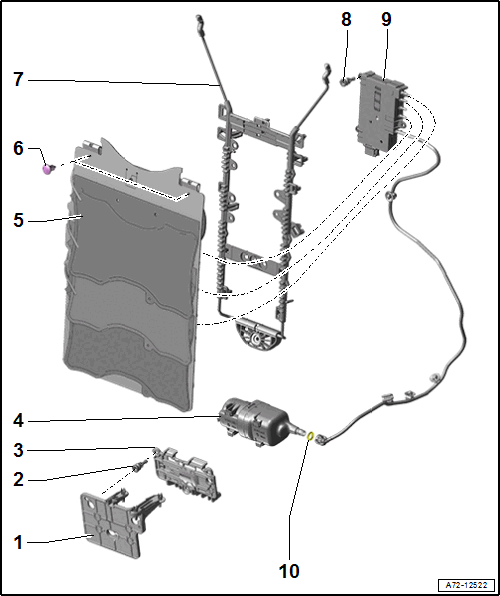

Overview - Pneumatic System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the multi-contour seat compressor
- Rubber Buffer
- Bracket
- For the multi-contour seat compressor
- Multi-Contour Seat Compressor
- Air Cushion
- For the lumbar support
- Refer to LUMBAR SUPPORT AIR CUSHION, REMOVING AND INSTALLING
- Clip
- Replace after removing
- Lumbar Support
- Rubber Buffer
- Front Multi-Contour Seat Control Module
- O-Ring
- Replace after removing
