Component Location Overview - Electric And Electronic Components
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

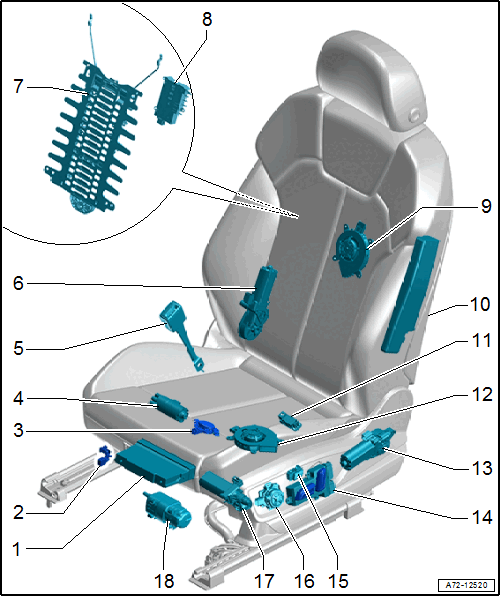

NOTE:
The Sport seat is shown.
- Seat Functions Control Module
- Memory Seat/Steering Column Adjustment Control Module -J136-
- Front Passenger Memory Seat Control Module -J521-
- Equipped on some models: integrated seat ventilation and seat heating function
- Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING
- Seat Position Sensor
- Driver Seat Position Sensor -G553-
- Front Passenger Seat Position Sensor -G554-
- Refer to OVERVIEW - SEAT POSITION SENSOR
- Passenger Seat Occupant Detection Sensor -G128-
- for the front passenger seat only
- Refer to OVERVIEW - SEAT POSITION SENSOR
- Seat Forward/Back Adjustment Motor
- Driver Seat Forward/Back Adjustment Motor -V28-
- Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Not available separately; replace the seat pan if faulty
- Seat Belt Switch
- Driver Seat Belt Switch -E24-
- Front Passenger Seat Belt Switch -E25-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
- Backrest Adjustment Motor
- Driver Backrest Adjustment Motor -V45-
- Front Passenger Backrest Adjustment Motor -V46-
- Not available separately; replace the backrest if faulty. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Power Lumbar Support
- Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
- Driver Seat Lumbar Support Height Adjustment Motor -V129-
- Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
- Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Front Multi-Contour Seat Control Module
- For Pneumatic Seat Versions
- Front Passenger Multi-Contour Seat Control Module -J872-
- Driver Multi-Contour Seat Control Module -J873-
- Refer to Front Passenger Multi-Contour Seat Control Module -J872- /Driver Multi-Contour Seat Control Module -J873-, REMOVING AND INSTALLING
- For Pneumatic Seat Versions
- Backrest Blower Fan
- Left Front Seat Backrest Fan 1 -V512-
- Right Front Seat Backrest Fan 1 -V516-
- Front Thorax Airbag
- with
- Driver Thorax Airbag Igniter -N199-
- Front Passenger Thorax Airbag Igniter -N200-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- with
- Rear Footwell Lamp
- Left Rear Footwell Lamp -W45-
- Right Rear Footwell Lamp -W46-
- Removing and Installing. Refer to LEFT REAR FOOTWELL LAMP -W45- /RIGHT REAR FOOTWELL LAMP -W46-, REMOVING AND INSTALLING .
- Seat Cushion Blower Fan
- Left Front Seat Cushion Fan 1 -V514-
- Right Front Seat Cushion Fan 1 -V518-
- Seat Height Adjustment Motor
- Driver Seat Height Adjustment Motor -V245-
- Front Passenger Seat Height Adjustment Motor -V246-
- Not available separately; replace the seat pan if faulty
- Seat Adjustment Control Head
- Driver Seat Adjustment Control Head -E470-
- Front Passenger Seat Adjustment Control Head -E471-
- Massage Button
- Driver Side Massage Function Button -E670-
- Front Passenger Massage Function Button -E671-
- Lumbar Support Adjustment Switch
- Driver Seat Switch Module -E663-
- Front Passenger Seat Switch Module -E664-
- Seat Angle Adjustment Motor
- Driver Seat Angle Adjustment Motor -V243-
- Front Passenger Seat Angle Adjustment Motor -V244-
- Not available separately; replace the seat pan if faulty
- Multi-Contour Seat Compressor
- For Pneumatic Seat Versions
- Driver Multi-Contour Seat Compressor -V439-
- Front Passenger Multi-Contour Seat Compressor -V440-
- Refer to OVERVIEW - PNEUMATIC SYSTEM
- For Pneumatic Seat Versions
