OVERVIEW - Battery, 48 V -A6-, 0K4 AND VH2

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

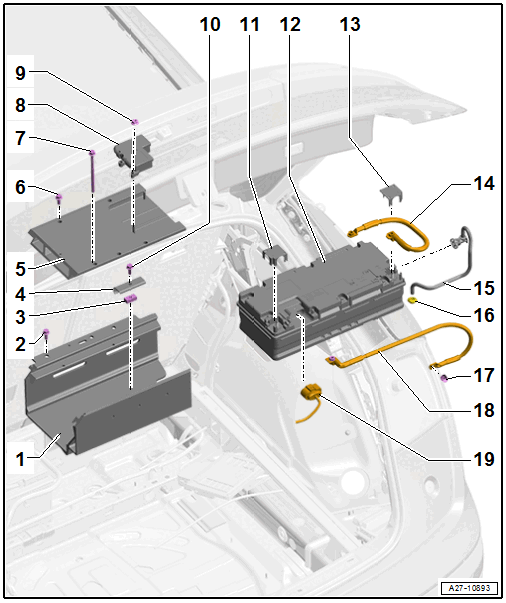

Fig 1: Exploded View Of - Battery, 48 V -A6- (0K4 AND VH2)

Courtesy of AUDI

Protective Housing
- Removing and Installing. Refer to PROTECTIVE HOUSING FOR Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2 .
Bolt
- Quantity: 3
- 20 Nm
Retainer
Retaining Bracket
Cover Plate
Bolt
- Quantity: 2
- 20 Nm
Bolt
- Quantity: 3
- 20 Nm
Terminal 40 Wire Junction 2 -TV67-
- Overview. Refer to MAIN FUSE PANEL ON BATTERY, REMOVING AND INSTALLING .
Nut
- Quantity: 2
- Tightening Specification. Refer to COMPONENT LOCATION OVERVIEW - COMPONENT LOCATION OVERVIEW - RELAY PANEL, INSTRUMENT PANEL, E-BOXES IN LUGGAGE COMPARTMENT, 48 V SYSTEM, 0K4 AND VH2 .
Bolt
- 20 Nm
Ground Cable Cap
Battery, 48 V -A6-
- Removing and Installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2 .
Positive Cable Cap
Positive Cable
- 18 Nm
Pressure Balance Hose
Grommet
Nut
- 20 Nm
Ground Wire
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- 18 Nm
Connector
