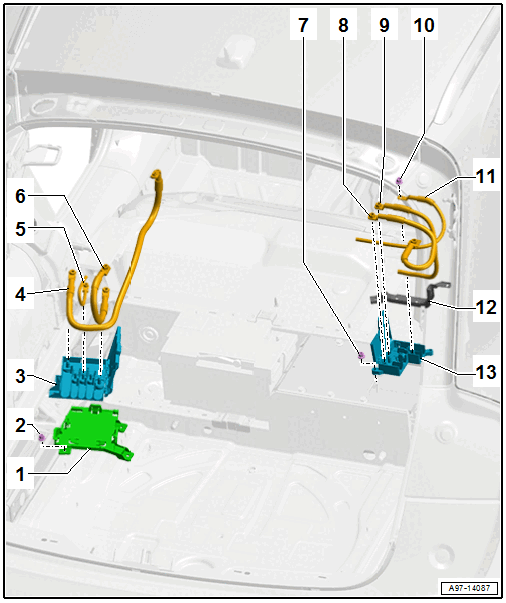

Component Location Overview - Component Location Overview - Relay Panel, Instrument Panel, E-Boxes In Luggage Compartment, 48 V System, 0K4 And VH2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For the Wire Junction -TV1-
- Nut
- Quantity: 3
- 3.5 Nm
- Wire Junction -TV1-
- Removing and Installing. Refer to Wire Junction -TV1-, REMOVING AND INSTALLING .
- Positive Cable
- To the main fuse panel
- Tightening specification: 18 Nm.
- Line
- Allocation. Refer to Wiring Diagram.
- Tightening specification: 7.5 Nm
- Line
- To the Voltage Converter, 48 V/12 V -A7-
- Tightening specification: 18 Nm.
- Nut
- Quantity: 2
- 3.5 Nm
- Positive Cable
- To the Battery, 48 V -A6-
- Tightening specification: 20 Nm
- Line
- To the Terminal 40 Wire Junction -TV66-
- Tightening specification: 20 Nm
- Nut
- 9 Nm
- Line
- To the Voltage Converter, 48 V/12 V -A7-
- Cable Holder
- Terminal 40 Wire Junction 2 -TV67-
- Removing and Installing. Refer to Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING, 48 VOLT SYSTEMS .
